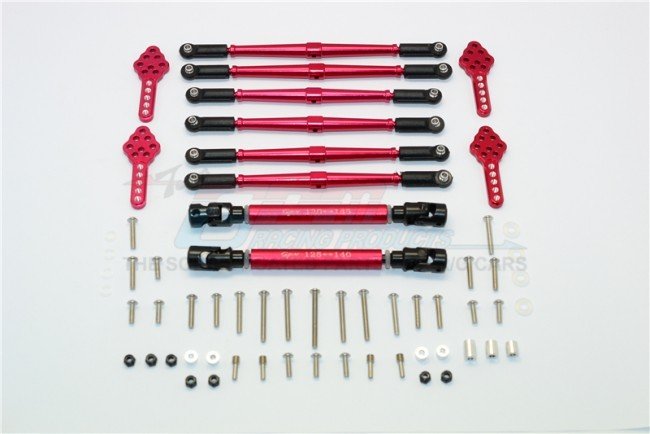

This system includes :
Stainless Steel Button Head Screw
3*30 - 1pc
3*25 - 4pcs
3*20 - 3pcs
3*16 - 8pcs
3*10 - 8pcs
Aluminium Collars
3*6*4 - 4pcs
3*6*6.5 - 1pc
3*6*7.5 - 1pc
3*6*9 - 1pc - 4pcs
M4*2.5*12 Screw Shaft
O-Ring
4*2.5 - 4pcs
4*1 - 4pcs
3MM T Lock Nut - 7pcs
Product major function & use :
1. boost the height of this framework, enlarge the crawling angle specially in complex crawling rocky landscape
2. principal Shaft is upgraded from CVD check out universal swing shaft cross head to get a larger angle of steering
3. Centered on various holes of this damper dish, they can enable the dampers to be adjusted in different height.
Lift the car from 77mm ground approval to 87mm ground approval can guarantee the crawling perspectives be larger and in a position to face more technical high traction landscape. This combination is able to plug and play. We've calculated each and every tie pole with extremely accurate dimension to avoid period of them is perfect without force during crawling.
Original height of chassis ground approval 77mm, this lift combination gets the height of 87mm, with a 10mm height increase
Front upper chassis link tie rod : Midpoint 130mm
Front lower chassis link tie pole : Midpoint 130mm
Rear lower framework website link tie rod : Midpoint 140mm
Adjustable primary shaft : very long primary shaft 125mm-140mm, Short primary shaft 130mm-145mm
