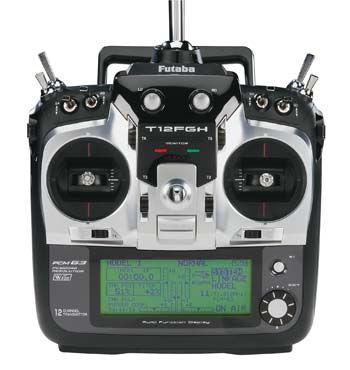

Futaba 12FGH 12-Channel (M1) PCM 40MHz/ R5114DPS/ 4xS9255 富他巴   [12FGH_C1]

This is the helicopter version that may default to heli settings whenever powered up and doesn't have a ratcheted throttle stick.

The Futaba 12FGH shares many features using the 14MZ like Real-Time reaction with 2048PCM, completely Synthesized Receiver that operates in either Mode A (standard Mode) or Mode B (new Mode), Servo Grouping, Variable double Rates and Quad-Bearing Gimbals.

QUALITIES:

• PCM G3 2048 quality is "backwards compatible" with 1024 PCM, and FM/PPM
• 10 free (user programmable) mixes
• 24 preset model kinds, 8 heli swash kinds and 16 model kinds for fixed wing aircraft
• 6 types of no end wing (winglet) in each airplane and glider
• Supports eight trip conditions (seven plus the default)
• FLASH-ROM memory for approximately thirty models
• 1882 model memory available with optional 1GB SD Card available separately, Six factory-set Variable Dual speed (VDR) curves may be assigned to virtually any function in virtually any journey condition configuration
• Adjustable Dual Rates (VDR) and Expo are combined so that they are automatically activated when a function is activated, no program blending needed
• Twin Antenna Diversity (DAD)
• "Full Functionality" trainer system
• 255 x 96 LCD with adjustable comparison
• 7.2V 1700mAh NiMH transmitter battery
• R5114DPS Receiver;
• Operates in either Mode A (standard Mode) or if traveling a model that generates many RF disturbance or if flying in a location in which disturbance might occur Mode B (brand new Mode) are chosen
• Through advanced Ball Grid Array (BGA) layered PC board technology, this 14-channel synthesized receiver may be the globe's smallest. All pilots will appreciate how effortless its
• WFSS (Wireless Frequency Setting System) makes changing frequencies at busy airfields. It could be done from the transmitter without changing crystals.
  Servo Grouping;
• Multiple servos controlling one function can be setup through transmitter then connected to in a different way adjustable receiver networks (also non-consecutively) without requiring a different servo synchronizer for blending. Each servo's
• EPA is adjusted independently from transmitter-no split servo synchronizer requires for blending
• Quad-Bearing Gimbals for smoothest motion and reaction, stick stress and detent are adjustable
• Front mounted slider switches for easier access
• Seven color Light-emitting Diode indicator

INCLUDES:

• 12FGH Synthesized Transmitter (not available separately) 40MHz Module
• 7.2V 1700mAh NiMH Transmitter Battery
• Battery Charger
• NiCd 1500mAh 4.8V Receiver Battery
• Four S9252 Servo
• R5114DPS Receiver
• Durable Change Harness
• Woven Orange Neck Strap
• Instructions

SPECS:

Transmitter:

• Operating System: 2-stick, 12 stations, PCM-G3 synthesizer system
• Modulation: PCM-G3, PCM 1024, or FM/PPM switchable

Receiver:

• Getting Frequency: United States just 72MHz bands
• Intermediate Frequency: 10.7MHz & 450kHz
• Size: 2" x 1.5" x .65" (52mm x 37.5mm x 16.5mm)
• Power Requirement: 4.8V NiCd battery
• Present Drain: 75mA
• Weight: 1.16oz (33g)

Servo:

• Speed: 0.16 sec/60?X @ 4.8V
• Torque: 125 oz-in (9.0 kg-cm) @ 4.8V
• Size: 1.6 x 0.8 x 1.4" (40 x 20 x 37mm)
• Body weight: 1.9oz (55g)
