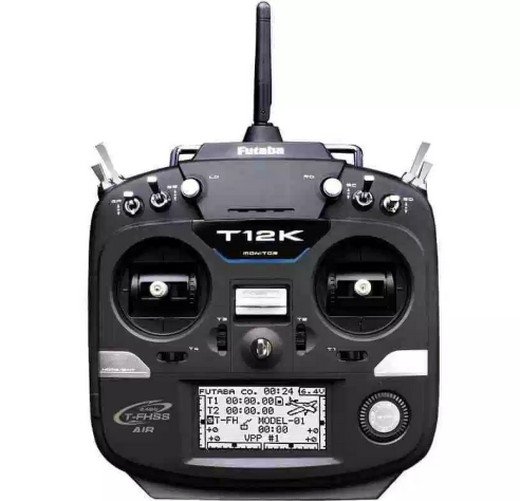

Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver 富他巴  [12K]

Loaded with the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K is compatible with almost twelve various Futaba receivers to match modelers' requirements. The 12K can transfer and get telemetry data through the T-FHSS protocol. Just install Futaba telemetry sensors (offered separately) to monitor journey data, receive alerts during flight and much more. These sensors enable pilots to keep track of battery voltage, altitude, speed along with other key flight functions.

In addition to telemetry, the 12K may be used with S.Bus2 gear to add multiple servos, gyros and more to set-ups with fewer cables. Pilots with non-telemetry set-ups may take advantageous asset of the interference-free S-FHSS protocol. A big, backlit LCD screen, expandable 30-model memory, a 6V 1800mAh NiMH battery pack and charger are only a few more of the features the 12K has to offer.

Pick from airplane and heli 12K systems with all the R3008SB telemetry receiver included. FPV/drone pilots will appreciate the lightweight, compact R3001SB FPV drone receiver optimized due to their applications.

Transmitter Qualities:

• Networks: 14 (12 proportional, 2 switched)
• Compatible with T-FHSS and S-FHSS protocols
• Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four electronic trims and two push buttons for quick, comfortable access
• Headphone plug, trainer port and S.Bus plug-in
• S.Bus2 system allows multiple servos, gyros and telemetry sensors with a minimal amount of cables
• Model kinds: six types of primary wing with three tail types for airplanes, six swash kinds for helis and multi-rotor functions
• Improved stick feel with adjustable lengths and stress
• Twin rates/exponential
• Included 6V 1800mAh NiMH battery pack and charger
• Large, backlit LCD display screen with adjustable contrast for easier reading. Push/dial procedure simplifies set-up
• Micro storage device slot for storing model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, perhaps not included)
• Vibration feature alerts pilots to various alarms and timers, additionally to sound
• 10-character model naming
• Expandable 30-model memory
• 5 journey conditions (Helicopter and Glider model selections)
• 5 customizable programmable mixes
• Servo make sure servo position display
• Fuel mixing
• Stick calibration
• Servo speed
• Logic switching

Airplane Qualities:

• 6 wing types
• 3 end wing types
• 5 trip modes
• Pitch bend
• Throttle bend
• Throttle wait
• Aileron differential
• Flap establishing
• Aileron to camber flaps
• Aileron to brake flaps
• Aileron to rudder
• Rudder to aileron
• Camber mix
• Elevator to camber
• Camber flap to elevator
• Butterfly function
• Trim mix
• Air braking system
• Gyro mix
• V-Tail
• Ailevator (twin elevator)
• Winglet
• Motor speed
• Rudder to elevator
• Snap roll
• Multi-engine functionality
• Airbrake
• Helicopter F

Helicopter Qualities:

• Six swash kinds
• Pitch curve and pitch trim
• Throttle bend and throttle hover trim
• Throttle hold
• Swash band
• Pitch to needle
• Pitch to rudder (revolution mixing)
• Gyro combining
• Governor combining
• Timer settings
• Throttle % timer

Glider Qualities:

• Glider-specific functions
• 6 wing types
• 3 tail wing kinds

Multirotor Qualities:

• Throttle stick place warning
• Gyro Feeling
• Flight Mode
• Throttle Curve
• Throttle Delay

R3008SB Receiver Features:

• T-FHSS protocol
• Double Antenna Variety
• S.Bus/S.Bus2 ports (S.Bus2 port for bidirectional telemetry sensors)
• 8-channel PWM old-fashioned ports
• Tall voltage
• Battery fail-safe
• External voltage slot: 0-70V DC
• Power requirement: 4.8-7.4V
• Proportions: 0.98 x 1.86 x 0.56 in (24.9 x 47.3 x 14.3 mm)
• Body weight: 0.36 oz (10.1 g)
