Futaba 3PM 3-Channel FM 27or40MHz/ R153F/ 2xS3003 富他巴  [3PM_C1]

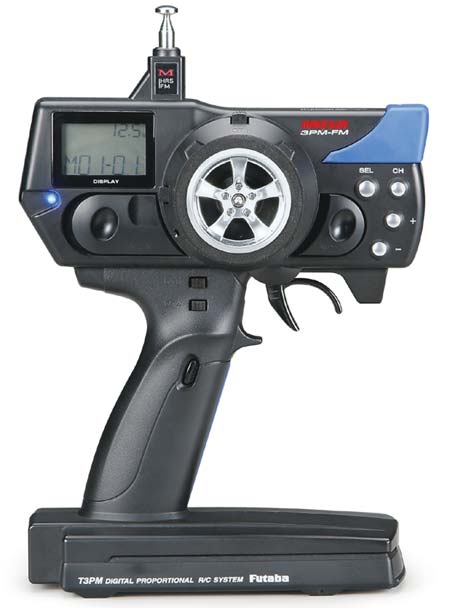

This is the Futaba 3PM FM 3-Channel Surface Computerized Pistol Grip Radio utilizing the R153F Receiver and two S3003 Standard Servos.

• 10-model memory
• Alphanumeric LCD display screen with a high strength Blue LED monitor, are changed to three different brightness amounts
• Condition switch-in certain functions low prices is put up and switched with SW1 switch simultaneously during a run
• Alarm buzzer
• Model content and clear functions
• ABS Braking
• Brake mixing for large automobiles
• One-channel program blending
• Steering and throttle Expo
• Servo reversing on all networks
• End Point modification (EPA) for many stations
• Multi-function timer up/down with lap memory
• Steering twin prices
• Throttle ATL
• Digital trims
• Function choose dial/switch
• Steering rate
• Charge jack for optional NiCds
• 12 months warranty


• One 3PM FM Transmitter
• One R153F FM receiver (FUTL0364)
• Two S3003 Standard Servos (FUTM0031)
• One crystal set (FUTL97**)
• One receiver battery package w/"J"connecter (No quantity)
• One switch harness (FUTM4350)
• Two accessory package w/rubber grommet, screw, metal eyelet (FUTM3551)
• One regularity flag set
• One instructions
• * Optional Transmitter NiCd: (FUTM1462) or FUTM1440
• * Optional Receiver NiCd: (FUTM1295)
• * Optional NiCd Charger: (FUTM1830)

• S3003 Servo x 2
  • Torque: 56.9 oz-in (4.1 kg-cm)
  • 0.19 sec/60X
  • Power Requirement: 4.8V or 6V
  • Size: 1.59" x 0.78" x 1.42" (40.4 x 19 x 36mm)
  • Body weight: 1.31oz (37.2g)
• Transmitter:
  • Modulation: FM (HRS/PPM switching possible)
  • Power Requirement: 8 AA cells or NT8F700B NiCd battery pack (9.6V)
  • Present Drain: 250mA or less
• R153F Receiver
  • Energy demands: 4.8 to 6.0V (shared with servos)
  • Frequency: 75MHz
  • Size: 1.5" x 1" x 0.6" (37.7 x 25.4 x 14.3mm)
  • Weight: 0.50oz (14.1g)
