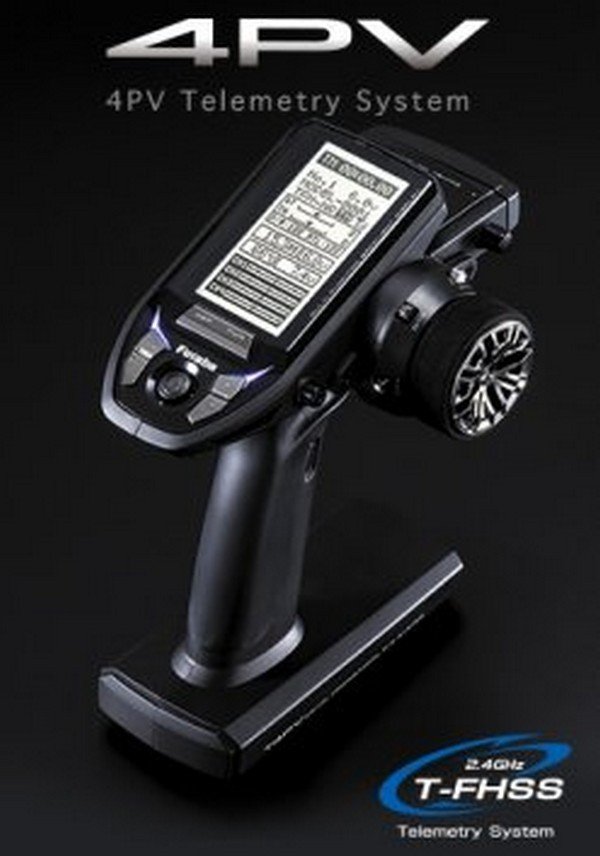

Futaba 4PV 2.4GHZ/T-FHSS Transmitter with Receiver R314SB 富他巴   [FP-4PV-24R1]

• T-FHSS and S-FHSS protocols
• Big backlit LCD screen
• Telemetry functions with logging capabilities and audible alerts
• Six digital trims
• 40-model memory
• 10-character model naming
• S.Bus/S.Bus2 servo development
• Direct Model Choose
• Model Copy/Model Clear
• Alarm tone modifications
• Fail Safe
• Dial trim action select
• Data transfer/copy
• Firmware updatable via CIU-2 or CIU-3
• Suitable for 2S LiFe batteries, NiMHs, dry cells along with other battery pack choices.

Fundamental Functions:

• Backlit 39x74mm dot matrix LCD screen with contrast
• Auditable alarm
• Adjustable steering tension
• Angled antenna
• Adjustable steering position (angle/APA)
• Adjustable throttle position (forward/back)
• Telemetry logging with adjustable settings
• Telemetry information message via earphone
• Servo link (development S.Bus servos from the transmitter)
• One electronic dial (programmable)
• One push switch (programmable)
• One push lock switch (programmable)
• Four push switches plus one jog dial for navigation
• Automated energy off
• S.Bus servo establishing
• Display switch (allows alterations in the settings without switching regarding RF signal)
• Two kinds of grip pads

Servo Alterations:

• Digital steering trim
• Digital steering trim rate
• Steering reverse
• Steering double prices
• Steering EPA (End Point Corrections)
• Steering expo
• Steering sub trim
• Digital throttle trim rate
• Throttle reverse
• Throttle EPA (End Point Changes)
• Throttle ATL
• Mechanical ATL
• Throttle expo
• Throttle sub trim
• ABS
• Idle-up
• Throttle acceleration
• Throttle preset (hold)
• Throttle servo speed

4PV Features:

• T-FHSS and S-FHSS protocols
• Large backlit LCD screen
• Telemetry functions with logging capabilities and audible alerts
• Six digital trims
• 40-model memory
• 10-character model naming
• S.Bus/S.Bus2 servo development
• Direct Model Select
• Model Copy/Model Clear
• Alarm tone alterations
• Fail Secure
• Dial trim action select
• Information transfer/copy
• Firmware updatable via CIU-2 or CIU-3
• Suitable for 2S lifetime batteries, NiMHs, dry cells and other battery pack options.
• Servo Alterations:

Digital steering trim:

• Digital steering trim price
• Steering reverse
• Steering double prices
• Steering EPA (End Point Alterations)
• Steering expo
• Steering sub trim
• Digital throttle trim rate
• Throttle reverse
• Throttle EPA (End Point Adjustments)
• Throttle ATL
• Mechanical ATL
• Throttle expo
• Throttle sub trim
• ABS
• Idle-up
• Throttle acceleration
• Throttle preset (hold)
• Throttle servo rate
• Mixing Functions:

Programmable blending:

• 4WS mixing
• Brake blending
• Gyro blending
• Steering combining
• Throttle blending

Channels 3 & 4 Programmable Functions:

• CH3 servo reverse
• CH3 action
• CH3 EPA (End Point Changes)
• CH3 sub trim
• CH3 braking system
• CH3 ABS
• CH4 servo reverse
• CH4 EPA (End Point Corrections)
• CH4 sub trim
• CH4 brake
• CH4 ABS

Timer Functions:

• Up timer
• Down timer
• Lap timer
• Lap memory (up to 100 laps & total)

Transmitter Requirements:

• Type: 4-Channel S-FHSS/T-FHSS*
• Includes: 4-Channel R304SB Receiver
• Requires: (4) "AA" alkaline batteries

*R304SB Receiver Specifications:

• Type: 4-Channel T-FHSS
• Input Power: 4.8V-7.4V
• Proportions: 1.38 x 0.91 x 0.33 in (35.1 x 23.2 x 8.5 mm)
• Body weight: 0.23 oz (6.6 g)
