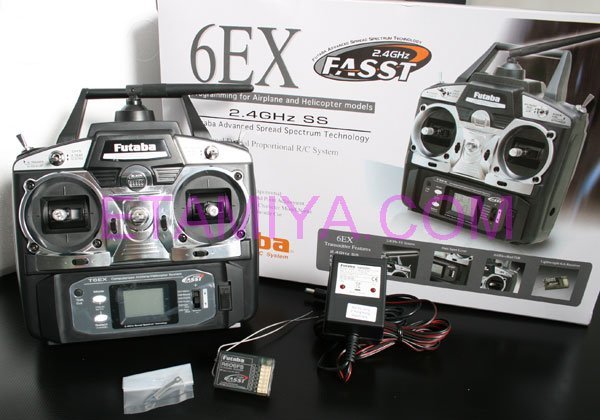

Futaba 6EX 6-Channel 2.4GHz FASST/ R606FS 富他巴   [6EX_C1]

Features :

Six model memory
Four character model naming
Multiple swash plate styles
Information reset
Trainer capability
EPA
Exponential and electronic trims
Data input lever allows effortless setting of end points and prices for several 6 channels.
Five point adjustment with two curves for both throttle and pitch curves.
Normal and Idle Up rate selection on both gyro blending and revo blending
Small presenter in face plate emits audio alarms
Throttle Hold switch for performing autorotation maneuvers and reducing idle for beginning
The transmitter for Helicopter is divided in to Mode 1 & Mode 2. The difference between two Mode is the place associated with the Lift foce control & Forward/Backward control. For Mode 1 (Right throttle), the kept pole is always to get a handle on the lift force ; as the left rod is forward / backward control .

2.4GHzSS (spread range) radio communication system
Frequency channel establishing unneeded: sifting the channels within the 2.4GHz musical organization automatically, this method minimizes the interference from 2.4GHz system
Accepts no unwelcome signals making use of ID code
The event "auto-detect" is useful to automatically figure out which mode is active, HRS or PPM mode (R606FS)
Quick and tiny antenna (PK-DSM2.4G)/diversity antemma (R606FS)
R606FS Receiver

2.4GHz SS
Dimension: 27.5X41.6X9.2mm
Weight: 9.8g

PK-FSM2.4G Module
RF module for transmitter with spread spectrum system
Correspondence Method: One-way poeration system
Mode: PPM, HRS (auto-detect)
Maximum Operating number: 80m (maximum condition)
For Safety: F/S, B-F/S, ID (about 4billion means of pair identifications)
Teansmission Antenna: 1/2 mono-pole
The charger is 230V (2 round pins plug)
