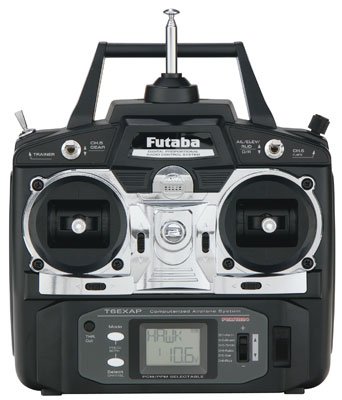

Futaba 6EXAP 6-Channel FM 40MHz/ R136F/ 4xS3003 富他巴   [6EXAP_C1]

FEATURES:

• Aileron, Elevator and Rudder twin rate switch - Use this switch to flip between two aileron, elevator and rudder control throw settings. The throws may be setup you choose, but generally, when the switch is up the throws are greater (higher level) so when the switch is down the throws are less (low rate). This switch also flips between exponential prices (if utilized).
• Flap control dial/Channel 6 - This dial operates the servo connected to channel 6 in receiver in the event your model has flaps here is the control utilized to use them.Aileron/elevator control stick -Mounting point for optional throat strap.
• Trim levers (all) -Used to move the neutral or center position of every servo as labeled into the diagram.
• Billing jack - Port for recharging the transmitter batteries with all the included battery pack charger.
• On-off switch
• DATA INPUT lever - always replace the values for the different functions shown on LCD screen.
• Liquid-crystal screen (LCD) - shows development modes and values entered.
• MODE key - Used to scroll through and show the ten or eleven(PCM) different functions.
• PICK key - always display the values the current function.
• Throttle-cut switch - to make use of the throttle-cut function, lower the throttle stick all the way, then drive the throttle-cut key to fully shut the carburetor and shut of the engine.
• Throttle/rudder control stick - Operates the servos connected to channel 3 (throttle) and channel 4 (rudder) within the receiver.
• Trainer switch - runs the trainer functions. To work as a trainer switch the transmitter must certanly be connected to another transmitter via. a trainer cord (available separately).
• Retractable landing gear switch/Channel 5 - change runs the servo linked to channel 5 in receiver if for example the model has retractable landing gear this is the control regularly expand and retract kit.
• Antenna - Radiates signals to the receiver. Never ever travel a model without completely expanding the antenna or perhaps you may produce disturbance to other modelers and decrease operational sign array of the transmitter. The antenna may be eliminated and replaced with another in case it's accidentally broken.

INCLUDES:

• Futaba 6-Channel 6EXAP transmitter
• Futaba R136F Receiver
• Four Futaba S3003 Servo
• Switch Harness
• Handbook

SPECS:

Transmitter

• T6EXAP Transmitter with programmable blending and 6-model memory.
• Transmitting on 40 / 72 MHz musical organization.
• Operating system: 2-stick, 6-channel system
• Modulation: FM(PPM) and PCM
• Power supply: 9.6V NT8S600B Ni-Cd battery pack or 12V alkaline battery pack
• Current drain: 250mA

Receiver

• R136F narrow musical organization, FM 6 channel receiver.
• Getting on 40 / 72 MHz band.
• Type: FM, Dual conversion/FM, Single transformation
• Intermediate frequencies: 455kHz, 10.7MHz/455kHz
• Power requirement: 4.8V or 6V
• Current drain: 9.5mA @ 4.8V
• Size: 1.31 x 1.98 x 0.71" (33.4 x 50.3 x 18.1mm)
• Fat 0.98oz (27.8g)

Servo

• S3003 standard servo with mounting hardware and servo supply assortment
• Control system: Pulse width control,1.52ms basic
• Power requirement: 4.8 or 6V (from receiver)
• Output torque: 44.4oz-in [3.2kg-cm] @4.8V
• Operating rate: 0.23sec/60?X@4.8V
• Size: 1.59x0.78x1.41" [40.4x19.8x36mm]
• Body weight: 1.3oz (38.0g)
