Futaba 6JH 6-Channel 2.4GHz S-FHSS Heli/4 S3001 Servos 富他巴  [6JH_01]

Blazing Speed. Red-hot Value

In S-FHSS mode, the 6J’s frame price is merely 6.8ms, an answer speed unmatched by other 6-channel flight system. However the 6J isn’t more or less rate; it’s also among the best values you’ll find anywhere.

It’s a simple and normal step-up from a 4-channel system. Assuming you already acquire a 6-channel, it’s a solid investment with a range of high-end features that goes far beyond everything you’d expect. Begin with 15-model memory. Throttle and pitch curves for airplanes plus helis. Electronic swash band for helis, plus four swashplate choices.

And with the blazing speed, absolute affordability and unequaled value, the 6J now offers the rock-solid safety and dependability of Futaba FHSS technology.

The R2006GS auto-adapts to the transmission mode chosen, whether it’s FHSS or high-speed S-FHSS mode. And because it operates on a wide range of voltage, you don’t require a regulator even if you utilize a 2S, 7.4V LiPo pack as a power supply.

Listed below are just some of the features which make the 6J one of the better trip system values around!

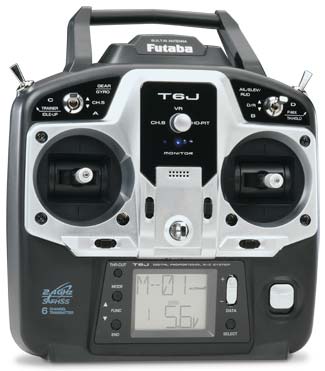

• The 6J faceplate appears clean and uncrowded, yet sets sticks, the development tips and the rotary knob within simple reach. A built-in antenna stops breakage and damage.
• Angled for a better, easier hold, and balanced for simple throat strap use, the 6J’s case also features a diverse, flat base which makes it stand sturdily when you set it down. Other features include a charging jack quietly and a square micro-port for a trainer cord regarding backplate.
• A big 40 x 30 LCD offers extra information and easier viewing at a glance. You can view model name, number and kind, voltage, modulation (and more) on the home display screen; push SELECT therefore understand timer!
• In the event that you scroll by the function you want, no issue; it is possible to navigate through menus forward and backward with the exact same simplicity.
• The majority of the 6J’s mixing functions is assigned towards the switch you choose, in order to adjust the control setup to your form of traveling.
• The 6J’s rotary knob can be used for a completely proportional 6th channel, fine-tuning hover-pitch or scale flaps. Additionally will leave space for an additional programmable mix you can activate with the flip associated with the switch.

System features:

• 15-model memory
• 4-character model naming
• Simple 1-lever/3-button programming
• Information reset
• Airplane & heli pc software
• FHSS/S-FHSS modes
• Mode 1-4 selectable
• 127-segment, 40 x 40 LCD
• Digital trims/trim memory
• Endpoint adjustment (EPA), sub-trims & servo reversing
• Dual prices & exponential (ail/ele/rud)
• Fail-safe (all stations; in S-FHSS mode just)
• Throttle cut
• Trainer system (cord required)
• Throttle position, mix & low battery pack warnings
• Up/down & model timer
• Number check mode
• R2006GS S-FHSS Receiver

Heli Features:

• (2) 5-point throttle curves
• (3) 5-point pitch curves
• Throttle hold
• Hover pitch
• Gyro combining
• Revo combining
• 4 swash plate types (H1, H3, HR3 & H3 w/AFR)
• Swash AFR (ail/ele/pitch)
• Throttle mix
• Electronic swash ring
• Throttle delay
• Pitch delay

Demands:

• 4 “AA” cells

Transmitter Specifications:

• Type: 2-stick, 6-channel, FHSS/S-FHSS selectable
• Present Drain: 170mA

Receiver Specifications:

• R2006GS 2.4GHz S-FHSS 6-Channel Receiver
• Type: Full-range journey receiver
• Modes: FHSS or S-FHSS
• Features: Easy-Link™ binding, high-voltage procedure, frequency-hopping, spread-spectrum design & double Antenna Diversity
• Voltage Input: 4.8V-7.4V
• Compatible Batteries: NiCd, NiMH, LiPo, LiIon & LiFe
• Dimensions: 1-11/16 x 15/16 x 516 in (43 x 24 x 7.9 mm)
• Body weight: 0.29 oz (8.3 g)
• Current Drain: 80mA (@ no signal)
• Stock #: FUTL7606
