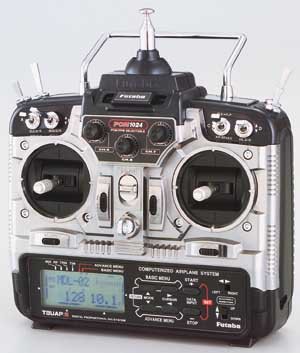

Futaba 8UAP 8-Channel PCM 40MHz/ R149DP/ 3xS3001 富他巴   [8UAP_C1]

8UAP Series radios are filled with all the advanced features pilots want in an 8-channel system. These advanced, fully programmable systems are well suited for the pattern flier or competitive pilot who would like the latest in radio technology.

FEATURES:

• Customized features for airplanes
• 8-channel radio system with PPM or PCM 1024 modulation
• Readable, bigger LCD screen with 6 edit secrets for easier development
• Digital trims with audible indicator at neutral enables in-flight trim alterations
• 8-model memory can use CAMPac option for as much as 16 model settings
• Programmable trainer function
• Model copy for duplicating settings without reprogramming
• Direct servo control for pre-flight evaluating and alterations (with purchase of optional DSC cable and R149DP receiver)
• Flight timer

Model Functions:

• Stores models' names as much as six figures
• 60-minute stopwatch function
• Engine cut
• All-channel servo reversing, all-channel fail-safe with PCM variations
• Selectable trim rate

Acro-Mix Functions:

• Adjustable exponential, specific part
• Elevator to flap mix
• Aileron to rudder mix
• Air brake
• Snaproll with security mode
• Aileron differential
• Flapperon
• Flap trim price
• Elevon
• V-tail
• Sub-trim 1-8
• Trim memory

INCLUDES:

• 8UA Transmitter, including RF module
• Four S3001 Servo, with mounting hardware and servo supply assortment
• R149DP Receiver
• Switch harness
• Aileron expansion cable
• Guide

SPECS:

Transmitter:

• Operating system: 2-stick, 8 networks, PCM1024 system
• Transmitting frequency: 40 MHz bands
• Modulation: FM/PPM or PCM, switchable
• Power supply: 9.6V NT8S600B Ni-Cd battery pack
• Present drain: 250 mA

Receiver:

• Narrow Band: 20KHz
• Intermediate Frequency- 1st IF: 10.7MHz
• 2nd IF: 455kHz
• Energy demands: 4.8 to 6.0V (distributed to servos)
• Present Drain: 15mA
• Size: 2.16" x 1.27" x 0.82" (55.0 x 32.0 x 21.0mm)
• Body weight: 1.2oz (36g)

Servo:

• Control system: Pulse width control, 1.52 ms neutral
• Energy requirement: 4.8V (from receiver)
• Output torque: 41.7 oz-in (3.0 kg-cm)
• Operating speed: 0.22 sec/60X
• Size: 1.59 x 0.78 x 1.41 (40.4 x 19.8 x 36 mm)
• Weight: 1.59 oz (45.1g)
