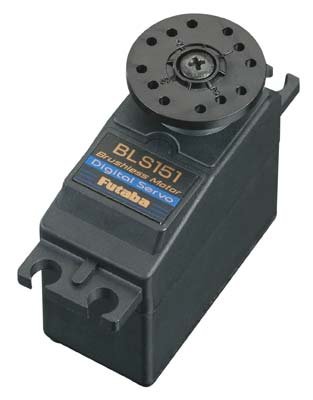

Futaba BLS151 Brushless Standard Air Servo 富他巴  [BLS151]

FEATURES:

• Standard size and fat for use on a variety of aircraft control surfaces
• At least five times are more durable than brushed servos
• Double ball bearings and Samarium cobalt magnets
• Smoother operation and greater resistance to jolts and vibration
• Same power consumption as brushed digital servos

INCLUDES:

Futaba BLS151 Servo with 0.83" (21mm) round horn, 1.8" (45mm) round horn, 1.25" (32mm) 6-point horn, 1.5" (38.8mm) 4-point horn, four
plastic grommets, four steel eyelets, four 1.5 x 12mm mounting screws and instruction sheet

NEEDS:

Installing in aircraft, linking linkage and connecting to receiver

SPECS:

• Power: 4.8V ONLY
• Speed: 0.15 sec/60?X @ 4.8V
• Torque: 133.3 oz-in @ 4.8V
• Size: 1.57 x 0.79 x 1.37" (40 x 20 x 34.8mm)
• Weight: 1.59oz (45g)

RESPONSES:

The BLS151 is designed for high torque/high rate applications.
Quite high current drain is normal at startup. Always utilize a 4.8V
NiCd battery pack for best performance.

For full performance of electronic servos use them only with FM, PCM and
FASST systems. Don't use electronic servos with AM systems.
