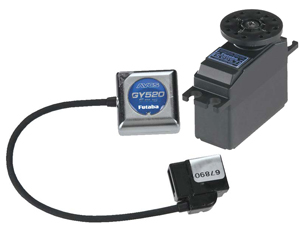

Futaba GY520 Heading Hold Gyro + S9257 High Speed Digital Servo for Helicopter Gyro Procedure.Futaba GY520 Heading Hold Gyro
FEATURES:
Ultra little and lightweight gyro within one unit-no separate sensor and control device
Uses a high speed advanced level PID (Proportional-Integral-Derivative) control algorithm Latest MEMS (Micro-Electro-Mechanical Systems) permits complete control system using one chip
Delivers superior performance with analog servos and excels with electronic servos
F3C and 3D mode selectable, six programmable parameters
Operates at quite high speed; 280Hz inside 1520uS mode and 506Hz inside 760uS mode
Programmable through solitary key and multi-color LED or through a PC utilizing Futaba
CIU-2 USB adapter
Registered AVCS (Angular Velocity Control System) architecture achieves unmatched end holding capability
12 months limited guarantee
INCLUDES: Futaba GY520 Heading Hold Gyro, instruction manual, one each 13" (330mm) lead with red connectors and lead with black colored connectors
two parts of sensor tape, mini screwdriver and instruction manual
REQUIRES: Digital or analog servos
SPECS: Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
Voltage Number: 3.8 - 6.0V DC
Control System: Advanced PID control
Current Draw: 40mA (without servo)
Sensor: MEMS vibrating framework gyro
Running Temperature: 14�XF - 113�XF (-10�XC - +45�XC)
Sensor speed number: +/- 800�X sec
Angular Velocity number: +- 800 deg/sec
This is actually the Futaba S9257 tall Speed Digital Servo for Helicopter Gyro procedure.
QUALITIES:
To be used using the Futaba GY401 (FUTM0807, FUTM0808) therefore the GY502 gyros
Built with two ball bearings
12 months limited guarantee
INCLUDES:
Futaba S9257 High Speed Digital Servo with .83" (21mm) diameter circular horn, 1.5" (39mm) diameter four-point horn, 1.2" (32mm)
diameter six-point horn, mounting hardware, digital servo
precaution sheet and warranty card
REQUIRES:
Linking to gyro
SPECS: Proportions: 1.4 x 0.6 x 1.1" (36 x 15 x 29mm)
Weight: .92oz (26g)
Torque: 28 oz-in (2.0 kg-cm) at 4.8V
Running Speed: 0.08 sec/60�X at 4.8V
Lead Length: 7.9" (200mm)
