Futaba MC230CR ESC w/Reverse 20+T 富他巴  [MC230CR]

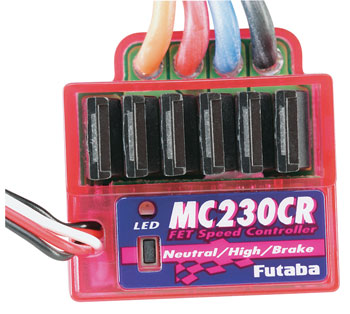

This is certainly a MC230CR Electronic Speed Control w/ Reverse for 20+ Turn Motors.

FEATURES:

• Operates motors being 20 appears to 27 turns (Stock Motors)
• All connectors are pre-installed
• One-touch set-up with set-up LED.
• Fully proportional forward and reverse
• Includes Reverse Disable so it's appropriate for ROAR rushing
• Heat/overload/short circuit security
• Low-battery feature immediately cuts motor energy when power levels become too low.
• Receiver reminder switch beeps to remind one to turn fully off the receiver and the vehicle will pulse (not run) ahead as yet another reminder.
• Braking System

INCLUDES:

• One MC230CR Electronic Speed Control w/ Reverse, Futaba J receiver connector, bullet connectors, standard type battery connector and ON/OFF switch.
• One Set-Up Screwdriver (FUTM5685)
• One Instruction Sheet

REQUIRES:

• Futaba J plug suitable receiver
• Female bullet motor connectors for engine, usage TRIC5500.

SPECS:

• Capability: 6 to 7 cell batteries
• Engine Limit: 20+ turns
• Current- Ahead: 90A Reverse: 45A
• On opposition: .0035 Ohms
• High Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for Battery, Bullet engine (all pre-installed)
• Bullet Motor Wire: 16 gauge
• BEC: Yes (6V) (1 amp)
• Length: 1.07" (27.1mm)
• Width: .50" (12.7mm)
• Height: 1.31" (33.3mm)
• Body weight: 1.55oz (44g)

REMARKS:

Generally speaking, high-torque and brushless servos for steering control can be utilized using this ESC providing the continuous present draw associated with the servo does not exceed 1A continuously. Do not use the Futaba S9157 high-torque servo with this particular ESC as this servo attracts over 3A."
