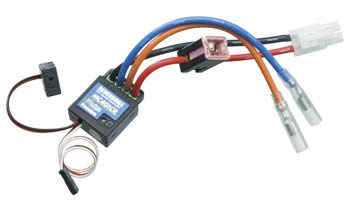

Futaba MC401CR ESC w/Reverse 富他巴   [MC401CR]

This is actually the Futaba MC401CR Electronic Speed Control with Reverse for engines with 10 turns and above.

FEATURES:

• SMD MOSFETs with smallest internal resistance for minimal loss and maximum performance
• Forward, Reverse, and Brake operations are all linear
• Reverse procedure termination function
• Heat and low voltage protection
• Serial slot interaction with a PC (Futaba CIU-2 Interface, FUTM0951 necessary)
• Serial interaction function-
• Data logging read and erase (Information logging memorizes the running up-to-date and power supply voltage for about 8-minutes at 2nd periods)
• Variable frequency range settings: 100Hz to 10kHZ (Sets force response system variable regularity range)
• Dead band: ??2μs ~ ??55μs (Neutral point range could be set)
• Low battery pack security voltage setting: 2.5V ~ 6V (Sets the voltage which cuts the production towards the motor if the power supply voltage is dropped)
• Present Limiter: 50A ~ 300A (The current limitation for suppressing energy can also be set and switched off)
• Brake mix: 0% ~ 100per cent (Sets the brake strength regarding the max brake point from basic)
• Basic braking system: 0per cent ~ 100percent (Brake establishing within throttle basic point)

INCLUDES:

Futaba MC401CR Electronic Speed Control with Reverse

REQUIRES:

Installing in vehicle and connecting to motor, receiver and battery NiCd or NiMH battery 4 - 6 cells (4.8V - 7.2V)

SPECS:

• Os: Forward and brake (Resolution 255)
• Energy requirement: NiCd, NiMH battery 4~6 cells (4.8 ~ 7.2V)
• PWM frequency-
• Ahead: 100Hz ~ 10kHz Initial value: 2.5kHz ~ 3kHz
• Brake: 2kHz
• BEC voltage: 6V
• Establishing: One-touch button
• Present ability: FET score
• Forward: 360A (Momentary load: 440A)
• Brake: 120A
• Fuse: 30A
• Battery reverse protection/overload security
• Case size: 1.01 x 1.03 x .51" (25.7 x 26.2 x 12.9mm) (excluding protruding components)
• Silicone wire gauge size: 14AWG equivalent
• Weight: .39oz (11.2g)
