Futaba R114F 4-Channel FM Rx 40MHz High with Short Crystal 富他巴  [R114F]

Futaba (#R114F) - Futaba 4-Channel FM Rx 40MHz tall with brief Crystal

NOTES FROM OUR TECH DEPARTMENT

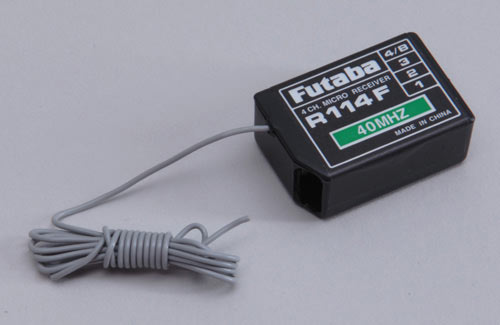

This is a R114F 4-Channel HI 40MHz FM Receiver "With Crystal" from Futaba.

FEATURES:

Narrow-band spacing and superior signal filtering combined to
provide extremely clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who want to use a single radio transmitter
to run several different models.
Perfect for Park or slowly Flyers.
Range of approximately 650 foot (200m)

SPECS: Narrow Band: 20kHz
Power demands: 4.8 to 6.0 volts (distributed to servos)
Current Drain: 10mA
Length: 1-1/4" (31.75mm)
Width: 1/2" (.02mm)
Height: 7/8" (.28mm)
fat: 0.35 oz (9.9g)

COMMENTARY: Unique Notice about Frequency Changes-
*72MHz- Low musical organization stations 11 to 35; High musical organization channels 36 to 60.
Receiver crystal stations (11-35 or 36-60) Within Each Band
Can Be Changed, and Do Not need a retuning of the receiver.
*72MHz Regularity Band (low or high) the receiver can't Be
Changed from low to high musical organization, OR from high to low musical organization without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz Frequency Bands cannot under any
circumstances be interchanged with one another. The receiver Must
be sent in for retuning to your appropriate band.
*50MHz, 27MHz and 75MHz receiver crystals could be changed anywhere
within the particular bands. There are not any high or low bands such
as the 72MHz musical organization has.
*Transmitter Crystals can't be changed to a different channel except
by an authorized service center. It's against FCC laws, and
illegal for the individual to improve a frequency determining component
of a transmitter. In the event that radio isn't retuned, it may be a hazard
spectators, modelers or home, and void AMA insurance policy.
*Check because of the local R/C club for the frequencies utilized in your neighborhood.
