Futaba S3103 Servo Micro Mini 富他巴   [S3103]

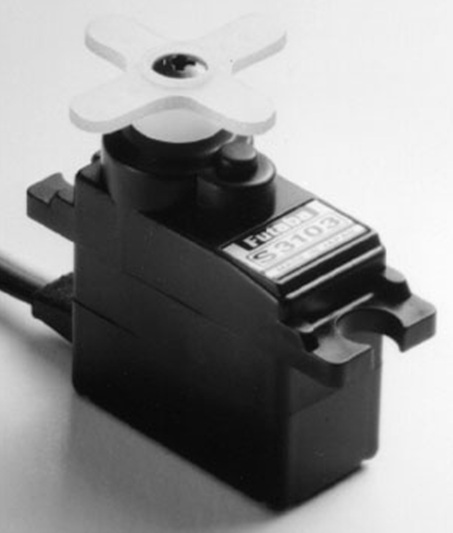

Here is the S3103 Micro Mini Precision Servo
Designed for use with Futaba broadcast Control Systems.
This Servo Takes the Place of the S133 Servo and contains Less Torque.

This servo can produce high-current draw from your batteries.
If making use of NiMH or Li-Po batteries, get them to capable
of delivering sufficient Amps.

FEATURES: Small Compact Design for Small Electric Engine Airplanes.
3-pole engine

INCLUDES: One S3103 Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings) FUTM23500

SPECS: Speed: .11 sec/60 deg @ 4.8V - .09 sec/60 deg @ 6V
Torque: 17 oz/in @ 4.8V - 21 oz/in @ 6V
1.2 kg/cm @ 4.8V - 1.5 kg/cm @ 6V
Length: 23mm (.9")
Width: 10mm (.4")
Height: 20mm (.8")
Weight: 9.5g (.3oz)

COMMENTS: The S3103 Servo can not be combined with Gasoline Engine Airplanes and
with big Gliders alongside Models that Require Torque.
The Utilization of a sizable Load at a top Power Supply Voltage Will Shorten-
the use Life. (4.8V Recommended)
The Accessory Servo Horn is made for Use with this particular Servo just.
Conventional Servo Horns Can Not Be Used. Always utilize the Special
Servo Horn.
ir/jl
9-15-00 UPDATE
The latest delivery among these sevos are now coming with white servo arms, which
some customers may mistake for Hitec. They are NOT Hitec. They look like they
will fit, however the client runs the possibility of stripping the production shaft if
they make an effort to use them on Hitec.
