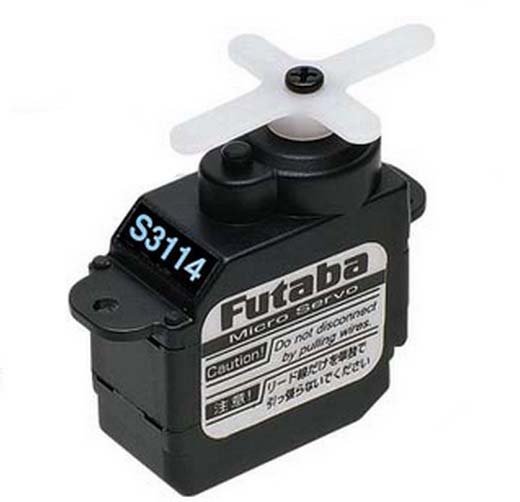

Futaba S3114M - Micro Servo (7.5g/4.8v-0.0sec-1.5kgcm/6v-0.09sec-1.7kgcm 富他巴   [S3114M]

This is actually the Futaba S3114 Micro tall Torque Servo with Micro Plug.

QUALITIES:

Well suited for electric planes and tiny electric helis Nylon gears

SPECS:

• 6V 4.8V
• Torque: 24 oz-in (1.7 kg-cm) 21 oz-in (1.5 kg-cm)
• Speed: 0.09 sec/60° 0.10 sec/60°
• Measurements: 0.9 x 0.4 x 0.8" (7/8 x 7/16 x 13/16") (22 x 11 x 20mm)
• Weight: 0.26oz (1/4oz) (7.5g)
• Lead Length: 6.5" (165mm)
• Production Shaft Diameter: 4mm

REMARKS:

Do not use S3114 servos with gas or high energy motor models, large gliders, or other models that want high torque Using supply voltage more than 6V or using high load to servo will shorten the life. Alway utilize the servo horn specifically designed for this servo. Do not usage traditional servo horns. Exorbitant force or surprise toward servo horn may damage the ultra mini accuracy gears within the servo.
