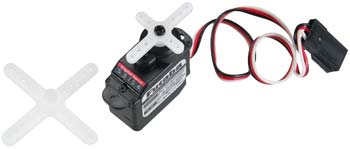

Futaba S3154 Digital Micro High-Torque Servo 富他巴  [S3154]

QUALITIES:

• Increased accuracy because it is Digital
• Lightweight, ideal for Micro helis
• Nylon gears

INCLUDES:

• One S3154 Digital Micro Servo
• One .91" x .64" (23mm x 16mm) 4 arm servo horn (comes pre-installed)
• One 1.33" x 1.33" (34mm x 34mm) 4 arm servo horn

NEEDS:

• Setting up into your model
• Order DUBM6924 if mounting hardware will become necessary

SPECS:

• Torque: 21 oz-in (1.5kg/cm) @ 4.8V
• 24 oz-in (1.7kg/cm) @ 6V
• Speed: 0.10 sec/60? @ 4.8V
• .09 sec/60? @ 6V
• Dimensions: .09 x 0.4 x 0.8in (22 x 11 x 20mm)
• Body weight: 0.28oz (7.9g)
• Lead Length: 6.5" (170mm)
• Output Shaft Diameter: 4mm

COMMENTS:

• Don't use S3154 servos with gasoline or high power motor models, big gliders, or other models that need high torque
• Making use of supply voltage greater than 6V or using high load towards the servo will shorten living.
• Alway use the servo horn specially designed for this servo. Don't use main-stream servo horns.
• Excessive force or surprise to your servo horn may harm the ultra mini precision gears in the servo.
