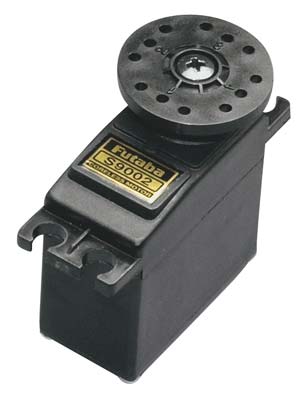

Futaba S9002 Servo Mini Coreless 富他巴  [S9002]

QUALITIES:

• Well suited for electric and mini cars, small electric airplanes and tiny electric helicopters
• Suitable for the Futaba GY401 Gyro (FUTM0807)
• Twin ball bearings insure smooth operation

INCLUDES: Futaba S9002 Mini Coreless Servo with 0.79" (20mm) diameter circular horn, 1.4" (35mm) diameter round horn, 1.2" (32mm) diameter 6 point horn, 1.5" (38.5mm) diameter 4 point horn and mounting hardware

REQUIRES: Installing in model, connecting linkage and connecting to receiver

SPECS:

• Torque: 34oz-in (2.5kg/cm) @ 4.8V
• 43oz-in (3.1kg/cm) @ 6V
• Speed: 0.18 sec/60? @ 4.8V
• 0.14 sec/60? @ 6V
• Size: 1.2 x 0.6 x 1.2" (1-1/4 x 5/8 x 1-1/4") (31 x 16 x 31mm)
• Weight 1.1oz (1-1/8oz) (31g)

REMARKS: A note on Coreless motors: main-stream servo engines have actually a steel core armature covered with wire that spins within the magnets. In a Coreless design, the armature uses a slim cable mesh that types a cup that spins around the surface associated with the magnet eliminating the heavy steel core. This design results in smoother procedure and quicker reaction time.
