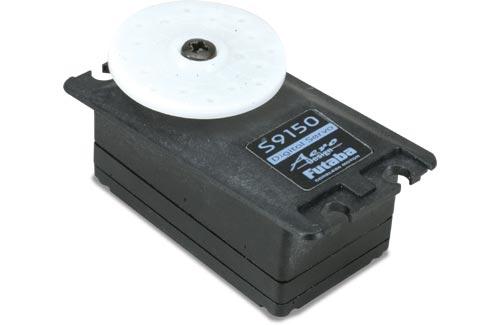

This is the Futaba S9150 Digital Aileron Servo with J Connector.
Designed for aileron applications on model aircraft.
This servo can create high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, get them to capable
of delivering sufficient Amps.
QUALITIES: Coreless motor
2 ball bearings
Digitally enhanced microprocessors cut in two the response time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Low profile aero design is particularly suited for wing installations
Black synthetic case
One year guarantee
INCLUDES: One S9150 Digital aileron servo 1-3/4" (44mm) diameter servo wheel,
1-1/4" (32mm) diameter servo wheel, one six point servo wheel,
four metal grommets, four mounting screws and two plastic mounts.
SPECS: Speed: 0.18 sec/60 deg @ 4.8V
Torque: 81 oz/in @ 4.8V (5.8 kg/cm @ 4.8V)
Length: 1.9" (48mm)
Width: 1.1" (28mm)
Height: 1.0" (25)
Weigth: 1.9 oz (53g)
Power Supply: 4.8V (Futaba does NOT recommend using 6V)
REVIEWS: S9150 Digital Servo Precautions,
-It is best to avoid long leads and Y-harnesses specially with
standard grade cables. If issues are encountered, consider using
heavy responsibility wire including Futaba's durable Series or Hobbico's
Pro Series,minimizing lead lengths, and/or removing Y-harnesses.
-Current Drain: This electronic servo is specially created for high-
torque or high-speed, consequently quite high present drain is normal
at startup. For ultimate performance when using this servo please
review these points.
1. Broadcast systems with the Battery Fail secure function have actually a
higher cut-off voltage setting that'll cause shorter
operation time.
2. Whenever installing the servo, please check pushrod linkage to
make yes there's absolutely no binding to be able to prevent excessive
power usage and reduce steadily the life for the motor and
battery.
This electronic servo cannot be used in combination with the following * AM *
transmitters as the servo neutral sign is: 1310us).
CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they'll work fine with current AM systems *****
** no other hands will continue to work on this, has a unique spline size.
