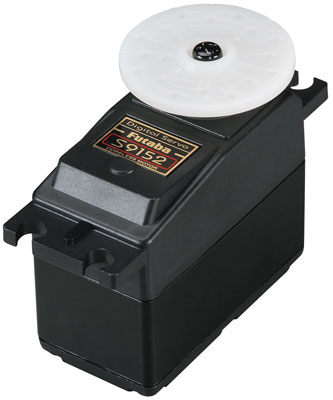

This is actually the Futaba S9152 Mega High Torque Digital Rudder Servo.
Comes with "J" Connector Pre-Installed.
FEATURES: durable wiring handles higher current loads
New steel center casing helps dissipate temperature and it is made to be
water and dust proof
Coreless motor
High Torque
One year guarantee
INCLUDES: One Futaba S9152 Digital Rudder Servo
Two rectangular grommets
Four brass bushings
Four 3mm x 15mm self tapping phillips head mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter star shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: .19 sec/60 degrees @ 6V
Torque: 278 oz/in @ 6V ( 20.0 kg/cm )
Weight: 3 oz (84g)
Length: 1.91" (48.6mm) situation just
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting hole facilities exact same side: 0.55" (14mm)
Distance between mounting opening facilities opposite side: 2.35" (59.6mm)
REMARKS: S9152 Digital Servo Precautions,
-It is best to prevent long leads and Y-harnesses specially with
standard grade cables. If issues are encountered, consider using
heavy responsibility wire such as for instance Futaba's Heavy Duty Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or the removal of Y-harnesses.
-Current Drain: Futaba S9152 Servo is especially Designed for High-
Torque and High-Speed, Therefore Very High Current Drain Is
Normal At business. For Ultimate Efficiency When Working With This Servo
Please Review The Following Points.
(1) When utilizing Systems With the Battery Fail Safe Function it Has
a Higher Cut-Off Voltage Setting That'll Cause Shorter
Operation Time.
(2) When setting up the Servo Please check always Pushrod Linkage To Make
Sure there is absolutely no Binding so that you can Prevent Excessive Power
Consumption and reduce the Life associated with the Motor and Battery.
This electronic servo can not be combined with the following * have always been *
transmitters whilst the servo neutral signal is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they will work fine with current AM systems *****
COMMENTARY: Servo Accessory Package (FUTM2042) includes the two large horns and
all mounting hardware mentioned previously.
Replacement Case Set is FUTM3071.
Replacement Gear Set is FUTM3452.
An email on coreless engines. The standard servo engine has a steel
core armature wrapped with with wire that spins within the magnets.
In a coreless design, the armature makes use of a thin cable mesh that forms
a glass that spins across the outside of the magnet eliminating the
heavy metal core. This design is a lot lighter causing smoother
operation and quicker reaction time.
