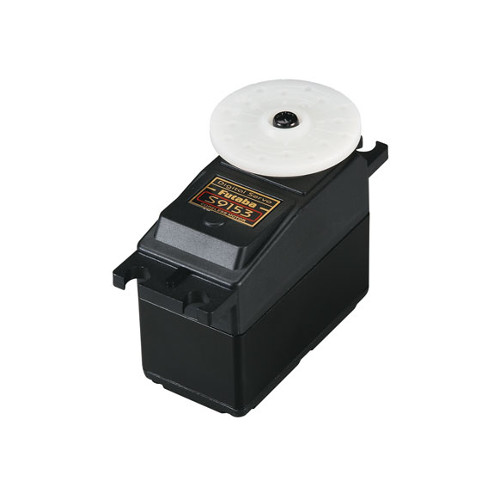

This is actually the Futaba S9153 Digital Aileron/Elevator Servo.
Comes with "J" Connector Pre-Installed.
QUALITIES: Heavy duty wiring handles greater present loads
Metal center casing which really helps to dissipate heat and is created to
be water and dirt proof
Coreless motor
High torque
One year guarantee
INCLUDES: One Futaba S9153 Digital Aileron/Elevator Servo
Two rectangular grommets
Four metal bushings
Four 3mm x 15mm self tapping phillips head mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: 0.15 sec/60 degrees @ 6V
Torque: 208 oz/in @ 6V ( 15 kg/cm )
fat: 3 oz (85g)
Length: 1.91" (48.6mm) instance just
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting opening facilities exact same part: 0.55" (14mm)
Distance between mounting hole centers opposite part: 2.35" (59.6mm)
REVIEWS: S9153 Digital Servo Precautions,
-It is better in order to avoid long leads and Y-harnesses specially with
standard grade cables. If dilemmas are experienced, consider using
heavy duty cable particularly Futaba's high quality Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or removing Y-harnesses.
-Current Drain: Futaba S9153 Servo is particularly made for High-
Torque and High-Speed, Therefore high active Drain Is
Normal At Startup. For Ultimate Performance When Using This Servo
Please Review These Points.
(1) When Using Systems With the Battery Fail Safe Function it Has
a Higher Cut-Off Voltage Setting That May Cause Shorter
Operation Time.
(2) When setting up the Servo Please check always Pushrod Linkage To Make
Sure There isn't any Binding so that you can Prevent Excessive Power
Consumption and reduce steadily the Life of the engine and Battery.
This electronic servo cannot be combined with these * have always been *
transmitters because the servo basic signal is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they'll work fine with present AM systems *****
RESPONSES: Servo Accessory Package (FUTM2042) includes both large horns and
all mounting hardware mentioned above.
Gear Set can be obtained individually, FUTM3453.
Case Set is available separately, FUTM3071.
A note on coreless engines. The standard servo motor has a steel
core armature wrapped with with cable that spins within the magnets.
In a coreless design, the armature uses a thin wire mesh that forms
a cup that spins round the outside of the magnet eliminating the
heavy metal core. This design is much lighter resulting in smoother
operation and faster reaction time.
