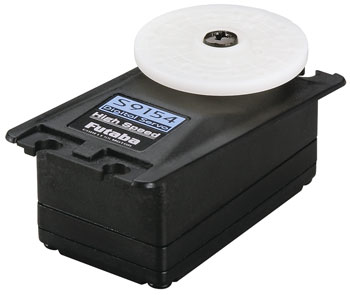

This is actually the Futaba S9154 Digital minimal Profile High Speed Aileron Servo
with J Connector.
Designed for aileron applications on model aircraft.
This servo can produce high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, get them to capable
of delivering sufficient Amps.
FEATURES: Coreless motor
Digitally enhanced microprocessors cut by 50 percent the reaction time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Low profile aero design is particularly fitted to wing installations
with thin airfoils
Black plastic case
One year warranty
INCLUDES: One S9154 Digital minimal Profile High Speed Aileron Servo
One round servo wheel, one 6 supply servo horn
four grommets, four mounting screws and two rubber mounts.
SPECS: Speed: 0.14 sec/60 deg @ 4.8V
Torque: 64 oz/in @ 4.8V (5.8 kg/cm @ 4.8V)
Length: 1.9" (48mm)
Width: 1.1" (28mm)
Height: 1.0" (25mm)
Weigth: 1.9 oz (53g)
Power Supply: 4.8V (Futaba cannot suggest utilizing 6V)
REMARKS: S9154 Digital Servo Precautions,
-It is better in order to avoid long leads and Y-harnesses especially with
standard grade wires. If dilemmas are experienced, consider using
heavy duty cable particularly Futaba's durable Series or Hobbico's
Pro Series,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: This electronic servo is specifically created for high-
torque or high-speed, therefore quite high current drain is normal
at startup. For ultimate performance when utilizing this servo please
review the next points.
1. Broadcast systems because of the Battery Fail Safe function have a
higher cut-off voltage setting which will cause shorter
operation time.
2. When setting up the servo, please always check pushrod linkage to
make sure there isn't any binding to be able to prevent excessive
power usage and reduce steadily the life of this engine and
battery.
An email on coreless motors. A conventional servo motor has a steel
core armature covered with cable that spins in the magnets. In
a coreless design, the armature uses a thin cable mesh that types a
cup that spins around the not in the magnet eliminating the
heavy metal core. This design leads to smoother procedure and
faster reaction time.
This digital servo can not be used in combination with the following * have always been *
transmitters as the servo neutral sign is: 1310us.
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
***** Otherwise they will work fine with present AM systems *****
No other arms works with this servo, because of the unique
spline size.
