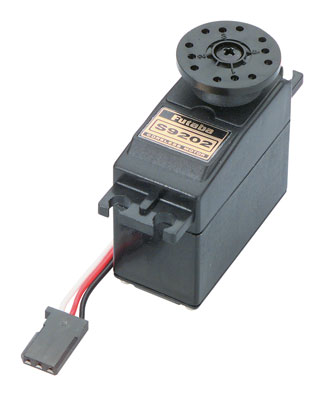

Futaba S9202 Ball Bearing Coreless Aircraft Servo 富他巴   [S9202]

This is the S9202 Ball Bearing, Coreless Servo made for Aircraft, and
helicopters. The S9202 replaces the S9201 and it has nylon gears.
Futaba items have a 1-Year Warranty for defects in materials & workmanship.

This servo can produce high-current draw from your own batteries.
If using NiMH or Li-Po batteries, make sure they are capable
of delivering adequate Amps.

This is simply not dustproof as is the S9304, hence just isn't suggested for vehicles and
trucks. This is not a requirement for servos utilized in planes.

INCLUDES: One S9202 Coreless servo with 2 Ball Bearings
One Accessory Bag (mounting hardware and horns)

SPECS: Length: 1.6" (41mm) Width: 0.8" (20mm) Height: 1.4" (35mm)
Torque: 76 oz/in @ 4.8V - 98 oz/in @ 6V
(5.5 kg/cm @ 4.8V - 7.1 kg/cm @ 6V)
Transit Time: .26 sec/60 deg @ 4.8V - .21 sec/60 deg @ 6V
Weight: 1.8 oz (50g)

REMARKS: A note on coreless engines. A conventional servo engine has a steel
core armature covered with with wire that spins in the magnets.
In a coreless design, the armature makes use of a thin wire mesh that forms
a cup that spins across the outside the magnet eliminating the
heavy metal core. This design is much lighter resulting in smoother
operation and faster reaction time.
