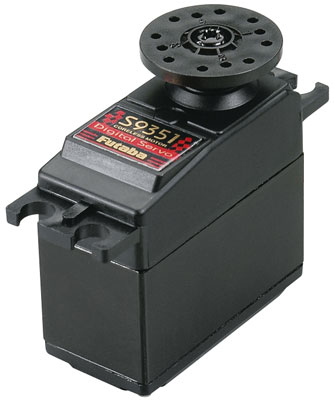

Futaba S9351 Digital High Torque Servo 富他巴   [S9351]

QUALITIES:
Includes Heavy Duty wiring that will manage greater active Loads
New Metal casing which helps to dissipate temperature
Coreless Engine
Tall Torque
Steel gears
Perfect for 1/8 automobiles or ships Where greater Torque and Speed are expected
One year restricted warranty

INCLUDES:
One Digital tall Torque Servo w/Small Round Horn and 7.5" (190mm) cable lead
Two Rectangular Grommets
Four Chrome Bushings
One "T" Horn

SPECS:
Speed: 0.16 sec/60�X @ 4.8V
0.13 sec/60�X @ 6V
Torque:153 oz-in @ 4.8V
192 oz-in @ 6V
Proportions: 1.6 x 0.8 x 1.4" (40 x 20 x 37mm)
Body weight: 2.2oz (61g)

COMMENTS:
If Gear Set becomes necessary FUTM3460
If First Gear just is required FUTM3500
For Grommets FUTM2346
For Eyelets FUTM2347
For Mounting Screws FUTM2250

S9351 Digital Servo Precautions,
-It is best to prevent long leads and Y-harnesses particularly with standard grade cables. If dilemmas are experienced, contemplate using high quality wire including Futaba's Heavy Duty Series or Hobbico's professional Series, minimizing lead lengths, and/or getting rid of Y-harnesses.

-Current Drain: Futaba S9350 Servo is specifically Designed for High-Torque and High-Speed, For That Reason Very High Current Drain Is Normal At Business. For Ultimate Efficiency When Working With This Servo Please Review The Next Points.

(1) When Using Systems with all the Battery Fail Safe Function it Has a greater Cut-Off Voltage Setting That'll Cause Shorter Procedure Time.

(2) Whenever Installing the Servo Please Always Check Pushrod Linkage To Be Sure There Clearly Was No Binding to Prevent Excessive Power Consumption and Decrease the Life of the Motor and Battery.

This digital servo cannot be combined with the next * have always been * transmitters because the servo neutral sign is: 1310us). CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
