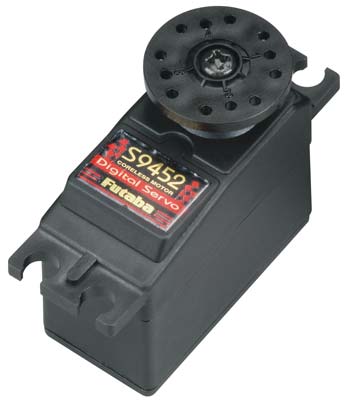

This is actually the S9452 Digital Hi-Speed.Hi-Torque Servo for most applications, especially, On-Road Touring automobile Use and includes "J" Connector Installed.
This servo is made to be used with 6V receiver packages.
This servo replaced the S9451 servo.
QUALITIES:
- Digitally Enhanced Microprocessor Cut Approximately Half the Response Time From Transmitter Input To Servo Reaction.
- Coreless Motor with two ball bearings on production shaft
- Metal Gears (to change, use FUTM3432)
- Tall Torque
- Situation is Made of Black vinyl with newly developed mounting flanges
- Dust and Water-resistant (Not Waterproof)
INCLUDES:
- One Digital Car/Boat Servo w/Small Round Horn
- Two Rectangular Grommets
- Four Brass Bushings (eyelets)
- One Small Round Horn (currently attached to the servo)
- One Three Arm Horn
- Purchase FUTM2250 if mounting screws are needed
SPECS:
- Speed: .13 sec/60?X @ 4.8V .11 sec/60?X @ 6V
- Torque: 102 oz-in (7.4 kg/cm) @ 4.8V 128 oz-in (9.2 kg/cm) @ 6V
- Body weight: 1.8oz (50g)
- Dimensions: 1.6 x 0.8 x 1.4" (40 x 20 x 34mm)
COMMENTARY:
S9451 Digital Servo Precautions,
-It is better in order to avoid long leads and Y-harnesses especially with standard grade cables. If issues are experienced, consider utilizing heavy duty wire particularly Futaba's Heavy Duty Series or Hobbico's Pro Series, minimizing lead lengths, and/or getting rid of Y-harnesses. Please Review The Next Points.
(1) when utilizing Systems because of the Battery Fail secure Function it offers a greater Cut-Off Voltage Setting That'll Cause Shorter Procedure Time.
(2) When Installing the Servo Please Always Check Pushrod Linkage To Be Sure There Isn't any Binding in Order To Prevent Excessive Power Consumption and reduce the Life for the engine and Battery.
This electronic servo can not be used in combination with the next * AM * transmitters as the servo neutral sign is: 1310us). CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
For complete performance of electronic servos, be sure to utilize them just with FM, PCM, and HRS systems. Don't use digital servos with AM systems.
