Futaba S9602 Servo High-Speed Mini Air 富他巴  [S9602]

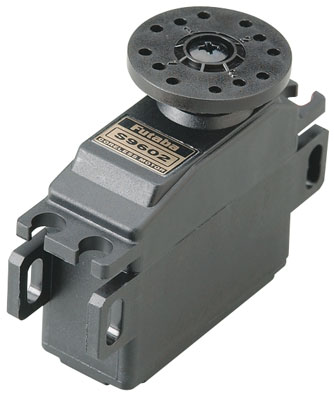

This is the S9602 Servo from Futaba. Its a Hi-Speed Mini Servo Ideal for Aircraft utilize. Comes with a "J" connector installed.

This servo can create high-current draw from your own batteries if using NiMH or LiPo batteries, cause them to become effective at delivering sufficient amps.

FEATURES:
Coreless Motor for Smoother, Stronger Action
Dual Ball Bearing Output Shaft
Metal Gears
Case is Made of Black Plastic
Water Resistant (NOT waterproof)
Perfect for Sailplanes or Gliders where greater Torque and Speed are needed.

INCLUDES:
One High Speed Mini Aircraft Servo.
One Servo Accessory Bag (grommets, brass bushings, screws, horns)

SPECS:
Speed: 0.11 sec/60�X @ 4.8V or .09 sec/60�X @ 6V
Torque: 30 oz-in (2.2 kg/cm) @ 4.8V
38 oz-in (2.7 kg/cm) @ 6V
Measurements: 1.4 x 0.6 x 1.2" (36 x 15 x 31mm)
Weight: 1.1oz (31g)

COMMENTARY:
The replacement case is in FUTM3065
If mounting hardware is needed, order FUTM2350
