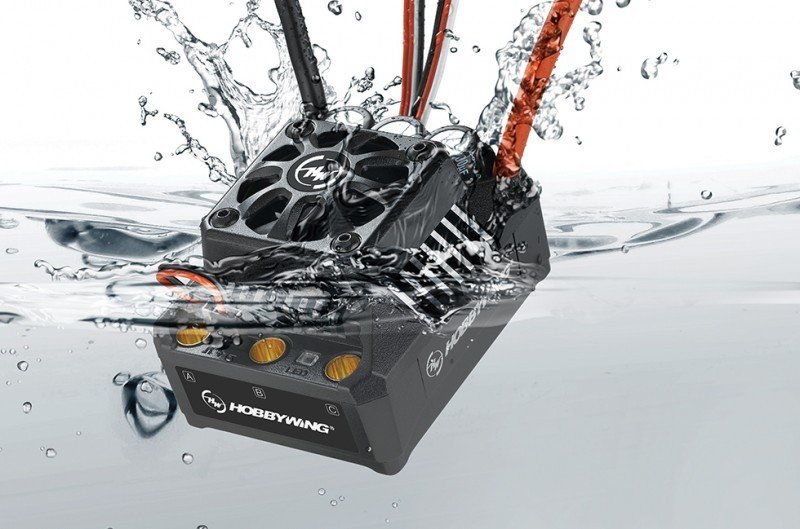

HOBBYWING EzRun MAX6 - 30105000 Hobbywing好盈  [HW-30105000]

Built most abundant in rugged and top-notch elements and coupled with
cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power
and performance even for the absolute most hardcore of rushing applications, but is additionally
responsive enough to guard itself from harm due to overloading due to physical
abuse, overuse or even individual error.

With amazing acceleration capabilities and a rock-solid, stable
output, the MAX6 are designed for instant full-torque start-ups for
wheelies, high-speed racing on straightaways and powering
through bumpiest terrain. The consumer may have the decision of
adjusting the ESC parameters as per their preference and ability.

The waterproof and dust-proof design enables the MAX6 to be used in every weather
conditions without the problem of damage triggered to your ESC from water or dirt.

The MAX6 has adopted the world’s very first HV built-in BEC with an output current all the way to 25Amp and a switchable output voltage of
6V-7.4V. The high voltage BEC is designed to manage today’s high
voltage servos on demand used by major cars.

The MAX6 features an electronic switch with a lifespan of over
50000 on/off rounds, housed in a completely waterproof,
dust-proof and shock-resistant design.

You can upgrade the MAX6 using the Hobbywing USB
LINK computer software, a multifunction LCD system field and a laptop.
Hobbywing updates its ESC firmware frequently giving you
upgraded features more often when available.

The MAX6 is created with interior anti-spark circuitry that protects not merely battery pack connectors
from damage but really helps to prevent physical damage as a result of burnt fingers through the inevitable
problem of sparking when hooking up the ESC to higher voltage battery pack packs (5S/6S/7S/8S).

MAX6 Applications:
This ESC does apply to various 1/6^th & 1/7^th scale vehicles like Traxxas XO-1, and
suitable to different 1/8^th scale heavy cars like CEN GST-E. It's the ideal option for
high-end aggressively driven builds.

• Scale : 1/6^th、1/7^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

• Cont./Peak Present : 160A/1050A
• Input : 3-8S LiPo/9-24 Cells NiMH
• BEC Output : Switch Mode:6V/7.4V,6A

• Input Wires : Red-10AWG-200mm*1/Black-10AWG-200mm*1
• Output Wires : Black-10AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 6.5mm Famale Gold Connectors (pre-soldered on the PCB)

• Size : 35.0x35.0x10.0mm
• Voltage Range : 5-7.4V
• Powered by : Powered by BEC

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

• Firmware Upgrade : Supported

• Size : 70.0x56.0x46.5mm
• Weight : 240g

• Motors : SL BL Motors/SD BL Motors(only in SL mode)
• Vehicles : 1/6^th、1/7^th Touring Car/Buggy/Truck
• KV Rating/T Count : 6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)
