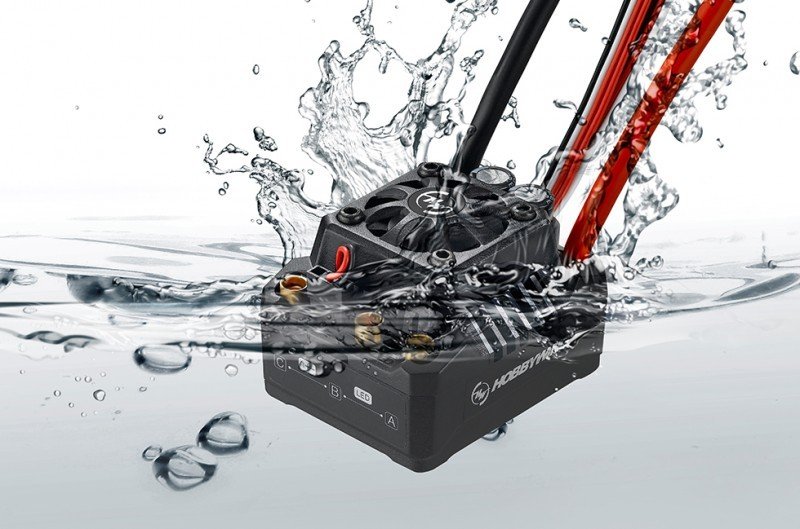

HOBBYWING EzRun MAX10 SCT - 30102601 Hobbywing好盈  [HW-30102601]

Built with tough and top-quality components and coupled with
cutting-edge firmware, the EzRun MAX10 SCT can deliver unmatched power and gratification for even
probably the most hardcore of rushing applicatinos, it is also responsive enough to guard itself from
damage because of overloading because of real punishment, overuse or even human being error.

The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles,
housed in a completely waterproof, dust-prood and shock-resistant design.

The waterproof and dust-proof design permits the MAX10 SCT to be used in all climate conditions
without the dilemma of damage caused towards ESC from water or dirt.

The filter capacitor thermal security very first applied within the MAX10 SCT will effortlessly protect
capacitors from exploding and causing irreversible harm to the ESC considering overload.

You can update the MAX10 SCT utilizing the HobbyWing
USB LINK pc software, a multifunction LCD program package
and a laptop computer. HobbyWing updates its ESC firmware
regularly providing you with upgraded features more often
when available.

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : Yes

• Cont./Peak Present : 120A/830A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC Output : Switch Mode:6V/7.4V,4A

• Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

• Size : 25.0x25.0x10.0mm
• Voltage Range : 5-7.4V
• Powered by : running on BEC

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

• Firmware Upgrade : Supported

• Size : 49.0x39.5x34.7mm
• Weight : 105g
