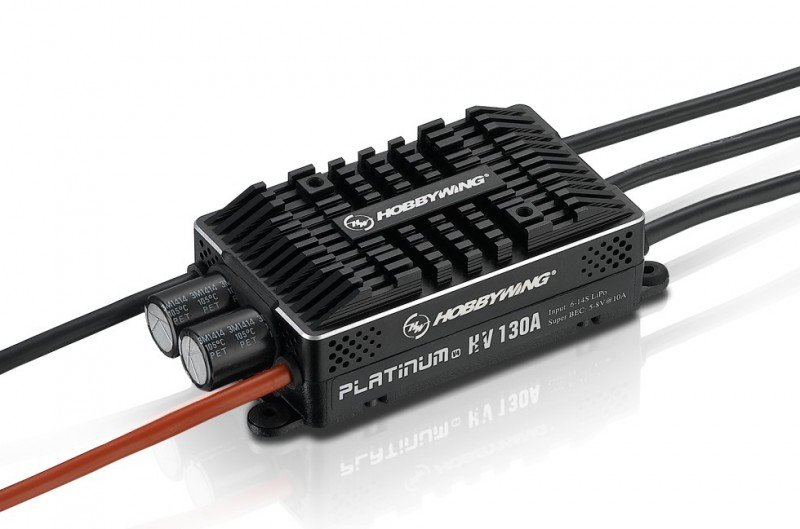

HOBBYWING Platinum HV 130A V4 - 30209200 Hobbywing好盈  [HW-30209200]

Platinum V4 serial services and products allows the motor to start exceedingly smooth and avoids tail-drift
conditions that helicopters experience. The start-up time is adjustable from 8 to 25 seconds,
this will absolutely produce a perfect kick off point for each flight.

High-performance 32-bit processor with a running frequency of 72MHz combined with
advanced level algorithm optimizes the speed governing. With the adjustable
governor parameters guarantee every pilot a precise control experience.

The integrated switch mode BEC with a variable voltage consist of 5V to 8V, a continuous current of
over 10A and top current of 25A can supply sufficient power for your servos to operate efficiently.

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four brake modes. The brake quantity is adjustable in normal
braking system mode; in proportional braking system mode, the brake force may be immediately
allotted based on the position of radio throttle stick; backwards braking system mode, the
motor rotation are changed via an extra transmitter channel.

• Brushed/Brushless : BL
• High Voltage/Regular : High Voltage

• Cont./Peak Current : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC production : change Mode:5-8V,10A

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

• Transmitter : maybe not Supported
• LED Program Card : Not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

• Firmware Upgrade : Supported

• Size : 101.0x45.5x27.0mm
• Weight : 169g
