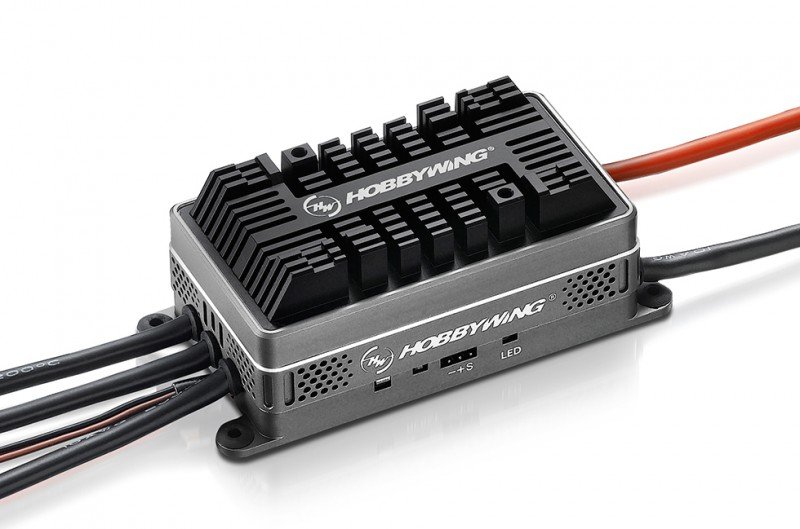

HOBBYWING Platinum HV 200A OPTO V4 - 30209100 Hobbywing好盈  [HW-30209100]

HOBBYWING Platinum HV 200A OPTO V4 - 30209100
價格:
HKD$0.00
牌子:
Hobbywing
型號:
HW-30209100
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC
類別中嘗試尋找類似的產品
填寫評論
alt="HOBBYWING Platinum HV 200A OPTO V4 - 30209100" title="HOBBYWING Platinum HV 200A OPTO V4 - 30209100"
alt="HOBBYWING Platinum HV 200A OPTO V4 - 30209100" title="HOBBYWING Platinum HV 200A OPTO V4 - 30209100"
alt="HOBBYWING Platinum HV 200A OPTO V4 - 30209100" title="HOBBYWING Platinum HV 200A OPTO V4 - 30209100"
Unique Design

The elegant cases are manufactured by Aluminum. Each cooling slot and its particular fin were carefully designed
and arranged, together with instance went through oxidation, coloring and edge-highlighting.


Revolutionary Heat Dissipation
Structure

The innovative "duo" stacking structure
permits all components on both sides for the
printed circuit boards to quickly conduct
heat to the aluminum situation.


Excellent Motor Speed Governing

High-performance 32-bit processor combined with
higher level algorithm makes the motor
speed-governing exemplary for different conditions.
With all the adjustable sensitivity of speed-governing,
every pilot can find the best option settings for
their helicopter.





Product Specification
Type
  • Brushed/Brushless : BL
  • High Voltage/Regular : HV

Specifications
  • Cont./Peak Current : 200A/250A
  • Input : 6-14S LiPo
  • BEC Output : No

Wires & Connectors
  • Input cables : Red-10AWG-150mm*1/Black-10AWG-150mm*1
  • Output cables : Black-10AWG-150mm*3
  • Input Connectors : No
  • Output Connecotors : No

ESC Programing via
  • Transmitter : perhaps not Supported
  • LED Program Card : perhaps not Supported
  • LED Program Box : maybe not Supported
  • LCD Program Box : Supported
  • WiFi Module : Supported
  • Program Port : Separate Program Port

Firmware
  • Firmware Upgrade : Supported

Size & Weight
  • Size : 106.0x50.0x40.0mm
  • Weight : 305g
