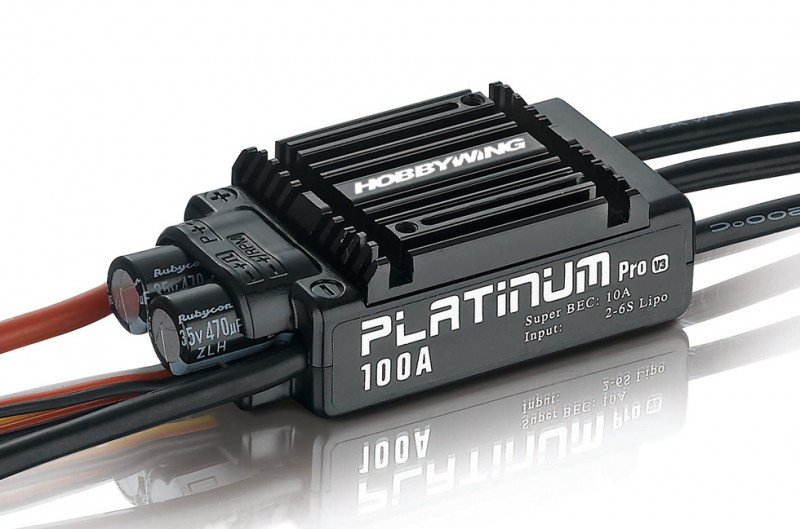

HOBBYWING Platinum 100A V3 - 30203900 Hobbywing好盈   [HW-30203900]

New structure design coupled with high-performance micro-processor
guarantees users efficient heat dissipation, good compatibility (with various engines),
high driving efficiency, and an such like.

This Platinum 100A V3 ESC featuring a consistent current of 100A
and peak up-to-date all the way to 150A guarantees users high and stable production
constantly during each journey.

The built-in switch mode BEC with a voltage adjustable among
6.0V/7.4V/8.4V, a continuing up-to-date of over 10A and peak present of 25A
can supply enough energy for your servos to use effortlessly.

Besides the heatsink on Platinum 100A V3, an extra cooling
fan is included in product box to maximize cooling performance (customers can install it
onto ESC heatsink if necessary).

This Platinum 100A V3 ESC featuring “Fixed-wing/Helicopter (Linear
Throttle)/Helicopter (Elf Governor)/Helicopter (Store Governor)” four
journey modes and “Auto Restart (Time)” function guarantees users excellent
speed-governing performance in Heli Governor mode and allows users to cutoff production and restart
motor for avoiding possible crash brought on by poor operation.

Multiple protection features consist of irregular input voltage,
ESC thermal, throttle signal loss (or Fail secure), and low voltage cutoff
efficiently prolongs the service life of ESC.

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

• Cont./Peak Present : 100A/150A
• Input : 2-6S LiPo
• BEC Output : Switch Mode:6V/7.4V/8.4V,10A

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm silver Connectors (Female)

• Transmitter : Supported
• LED Program Card : Not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

• Firmware Upgrade : Supported

• Size : 70.0x35.0x21.0mm
• Weight : 104g
