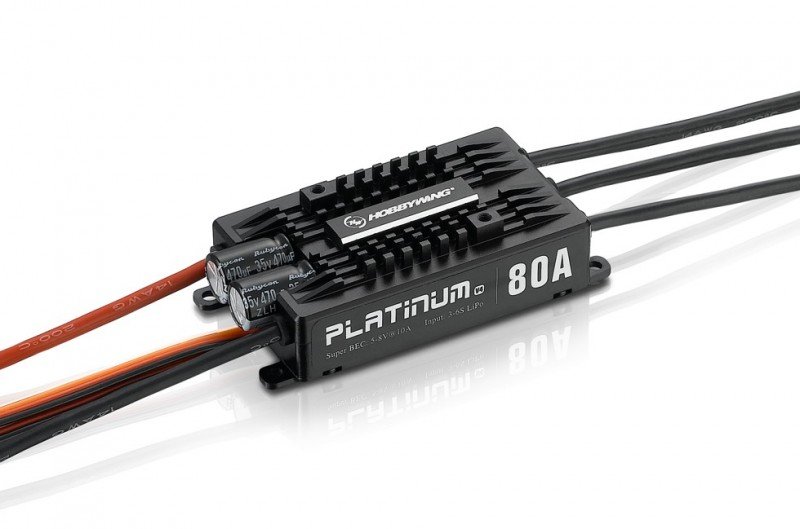

HOBBYWING Platinum 80A V4 - 30203200 Hobbywing好盈   [HW-30203200]

Platinum V4 serial products permits the engine to start out excessively smooth
and avoids tail-drift issues that helicopters experience. The start-up time
is adjustable from 8 to 25 seconds, this will absolutely create a great
starting point for each flight.

High-performance 32-bit processor with a prossesing frequency of 72MHz coupled with
advanced level algorithm optimizes the rate governing. Alongside the adjustable governor
parameters it will guarantee every pilot an exact and efficient control experience.

A separate system slot for connecting programmer on this ESC allows individual to
● Program ESC,
● Check trip data include minimal voltage, optimum temperature, standardized RPM and
speed bend (in Heli Governing Store mode) of the trip parameters recorded by the ESC,
●Upgrade ESC firmware with a mutifunction LCD program package or a WiFi Module & our
Apple/Android phone App.

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four brake modes. The braking system amount is adjustable in
normal brake mode; in proportional brake mode, the braking system force is going to be
immediately selected on the basis of the place of radio throttle stick; in reverse
braking system mode, the engine rotation may be changed via an extra transmitter channel.

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

• Cont./Peak Present : 80A/100A
• Input Voltage : 3-6S LiPo
• BEC production : change Mode:5-8V,10A

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm silver Connectors (Female)

• Transmitter : perhaps not Supported
• LED Program Card : maybe not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

• Firmware Upgrade : Supported

• Size : 84.3x38.2x20.4mm
• Weight : 97g
