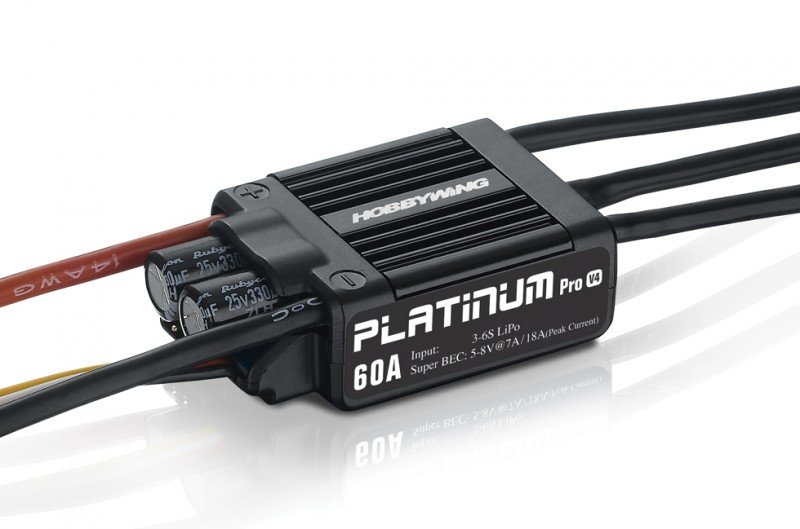

HOBBYWING Platinum 60A V4 - 30215100 Hobbywing好盈   [HW-30215100]

High-performance 32-bit processor with a running frequency of 72MHz
coupled with advanced algorithm optimizes the rate governing.
Alongside the adjustable governor parameters guarantees every
pilot a precise control experience.

The integral switch mode BEC with a variable voltage range between 5V to 8V,
a consistent current of over 7A and top current of 18A can provide sufficient
power for your servos to use efficiently.

This Platinum 60A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four brake modes. The brake amount is adjustable in
normal brake mode; in proportional braking system mode, the braking system force will likely be
immediately allocated on the basis of the place of radio throttle stick; in reverse
brake mode, the motor rotation may be changed via an extra transmitter channel.

Multiple security features consist of, ESC thermal, capacitor thermal
(HOBBYWING-patented technology), ESC overload, throttle sign loss (or Fail Safe),
and low voltage cutoff effectively prolongs the solution life of the ESC.

A separate development slot for connecting the programmer on this ESC permits user to
● Program ESC,
● Check flight data include minimal voltage, maximum temperature, standardized RPM and
rate curve (in Heli Governing Store mode) associated with flight data recorded by the ESC,
● Upgrade ESC firmware with a multifunction LCD program field or a Wi-Fi Module & our Apple/Android phone App.

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

• Cont./Peak Present : 60A/80A
• Input Voltage : 3-6S LiPo
• BEC production : change Mode:5-8V,7A

• Input cables : Red-14AWG-100mm*1/Black-14AWG-100mm*1
• Output cables : Black-14AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 3.5mm silver Connectors (Female)

• Transmitter : Not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Program/Throttle Wire

• Firmware Upgrade : Supported

• Size : 48.0x30.0x15.5mm
• Weight : 49g

• 450-480 Class Heli (Main Blade: 325-360mm）
