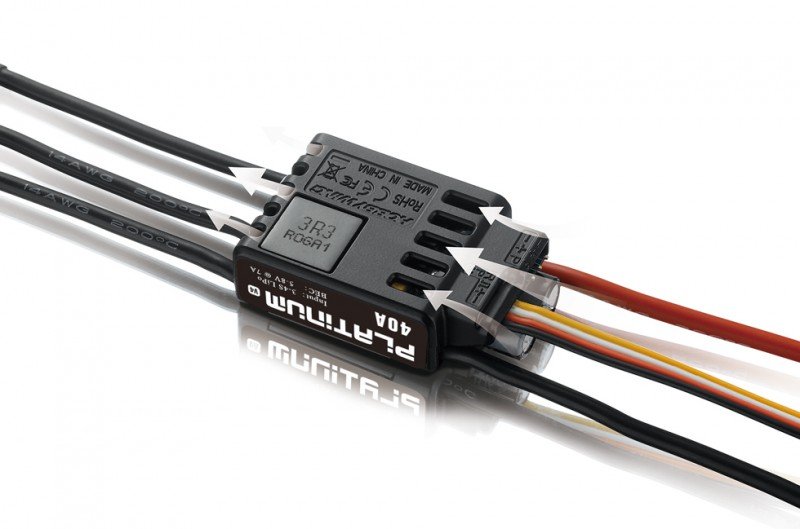

HOBBYWING Platinum 25A V4 & Platinum 40A V4 - 30204200 Hobbywing好盈  [HW-30204200]

High-performance 32-bit processor with a running frequency of 72MHz
along with advanced algorithm optimizes the speed governing.
Alongside the adjustable governor parameters guarantees every
pilot an exact control experience

The built-in switch mode BEC with a variable voltage (6V/7.4V the Platinum
25A V4, 5V~8V with the action of 0.1V for the Platinum 40A V4), a continuous up-to-date
of over 3A/7A (3A the Platinum 25A V4, 7A for the Platinum 40A V4) and a top
present of 7A/18A (7A the Platinum 25A V4, 18A for the Platinum 40A V4) can
supply sufficient energy for your servos to use efficiently.

The DEO (Driving Efficiency Optimization, approximately called "Active Freewheeling")
technology implemented inside ESC has multiple benefits.
● Quicker a reaction to the throttle change.
● greater driving efficiency, longer journey time.
● Lower ESC heat and a more reliable operation.

With the opposite Brake mode enabled when landing can effectively
reduce the sliding distance associated with the fixed-wing aircraft to simulate the
landing of a real aircraft (within a super brief distance). The conventional
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
additionally available; the braking system amount is adjustable in normal brake mode
whilst in proportional braking system mode, the brake force are going to be immediately
allotted based on the place of radio throttle stick.

Multiple security features include, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle signal loss
(or Fail Safe), and low voltage cutoff effortlessly
prolongs the service life of ESC.

A split development port allowing you to connect the programmer with this ESC enables user to
● Program ESC,
● check flight information consist of minimal voltage, optimum heat, standardized RPM
and rate curve (in Heli Governing shop mode) of trip data recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD program field or a Wi-Fi Module & our
Apple/Android phone App.

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

• Cont./Peak Present : 25A/40A
• Input : 3-6S Lipo
• BEC production : Switch Mode:6V/7.4V,3A

• Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
• Output Wires : Black-18AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 3.5mmGold Connectors (Female)

• Transmitter : perhaps not Supported
• LED Program Card : Not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

• Firmware Upgrade : Supported

• Size : 47x22x10mm
• Weight : 27g
