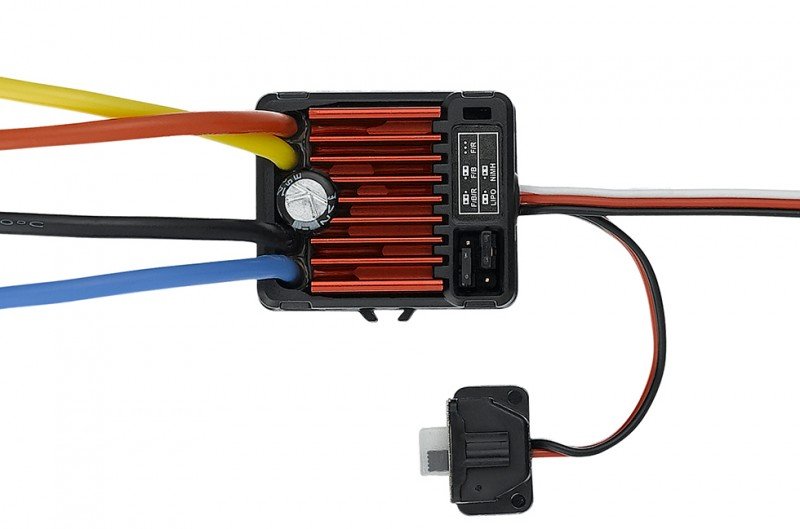

HOBBYWING QuicRun WP 1060 Brushed - 30120201 Hobbywing好盈  [HW-30120201]

This ESC is specifically created for brand new beginners and intermediate modelers;
it not merely holds forward the outstanding quality of HOBBYWING products but
simplifies the procedure.

Reliable hardware coupled with advanced software technology allows the
QUICRUN WP 1060 Brushed never to just offer high power output but
also overload security of this ESC circuit.

This ESC features automobile throttle calibration and parameter setting via jump caps is easy-to-use,
particularly applicable to brand new novices.

• Scale : 1/10^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

• Cont./Peak Current : 60A/360A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC Output : Switch Mode:6V/3A

• Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
• Output Wires : B lue-16AWG-100mm*1/Yellow-16AWG-100mm*1
• Input Connectors : Big-sized TAMIYA Connector
• Output Connecotors : 4.0 Bullet Connectors (Female)

• Size : No
• Voltage Range : No
• Powered by : No

• SET Button on ESC : perhaps not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : Not Supported
• Program Port : Jumper Cap

• Firmware Upgrade : perhaps not Supported

• Size : 36.5x32.0x18.0mm
• Weight : 39g

• Motors : Brushed Motors
• Vehicles : 1/10^th Touring Cars/Buggies/Trucks/Rock Crawlers
• KV Rating/T Count : 2S LiPo: T≥12T
  3S LiPo: T≥18T
  (540/550 Size engines)
