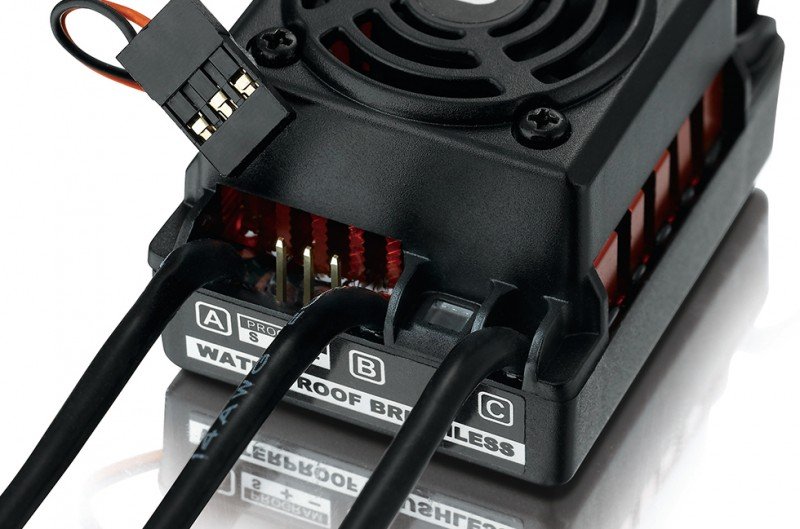

HOBBYWING QuicRun WP 10BL60 - 30107100 Hobbywing好盈   [HW-30107100]

This ESC is specifically designed for brand new novices and intermediate modelers;
it not merely holds ahead the outstanding quality of HOBBYWING products
but simplifies the procedure.

The waterproof and dust-proof design allows the QUICRUN WP-10BL60
to be used in all climate conditions with no dilemma of damage
caused to the ESC from water or dirt.

Reliable equipment combined with higher level software technology
permits the QUICRUN 10BL60 to not only provide high power production but
also overload protection of this ESC circuit.

The built-in switch mode BEC with a maximum production of 6Amp and voltage
of 6V get this ESC appropriate for various servos.

The SET switch regarding the ESC permits the user to easily plan or factory reset the ESC effortlessly.

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

• Cont./Peak Present : 60A/360A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : change Mode:6V/3A

• Input Wires : Red-14AWG-150mm*1/Black-14AWG-150mm*1
• Output Wires : Black-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connector (Female)

• Size : 30.0x30.0x10.0mm
• Voltage Number : 5-7.4V
• Powered by : Powered by BEC

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Not Supported
• WiFi Module : perhaps not Supported
• Program Port : FAN/Program Port

• Firmware Upgrade : Not Supported

• Size : 48.5x38.0x32.0mm
• Weight : 90g

• Motors : SL BL Motors/SD BL Motors(just in SL mode)
• Vehicles : 1/10^th Touring Cars/Buggies/Trucks/Monster Trucks
