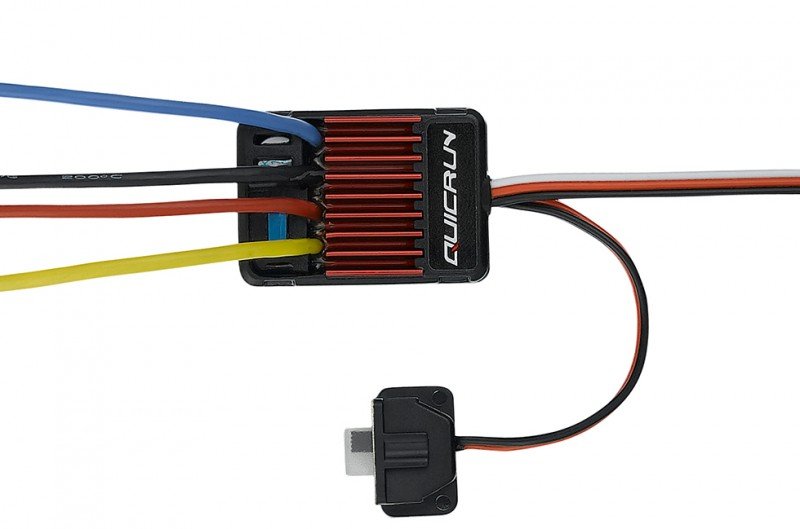

HOBBYWING QuicRun WP 1625 Brushed - 30120000 Hobbywing好盈   [HW-30120000]

This ESC is especially created for brand new beginners and intermediate modelers;
it not merely holds ahead the outstanding quality of HOBBYWING products
but simplifies the operation.

The waterproof and dust-proof design enables the QUICRUN WP-1625 Brushed to be used in every
climate conditions without any dilemma of damage caused towards the ESC
from water or dirt.

Reliable hardware combined with advanced pc software technology allows
the QUICRUN WP-1625 Brushed not to just provide high energy production but
also overload security of the ESC circuit.

• Scale : 1/16^th、1/18^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

• Cont./Peak Present : 25A/100A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : Linear Mode:6V/1A

• Input Wires : Red-18AWG-75mm*1/Black-18AWG-75mm*1
• Output cables : B lue-18AWG-75mm*1/Yellow-18AWG-75mm*1
• Input Connectors : Small-sized TAMIYA Connector
• Output Connecotors : 4.0 Bullet Connectors (Female)

• Size : No
• Voltage Range : No
• Powered by : No

• SET Button on ESC : maybe not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : maybe not Supported
• Program Port : Jumper Cap

• Firmware Upgrade : maybe not Supported

• Size : 34.0x24.0x14.0mm
• Weight : 24g

• Motors : Brushed Motors
• Vehicles : 1/16^th, 1/18^th Touring Cars/Buggies/Monster Trucks
• KV Rating/T Count : 2S LiPo: RPM≤30000
  3S LiPo: RPM≤20000
  (280/370/380 Size Motors)
