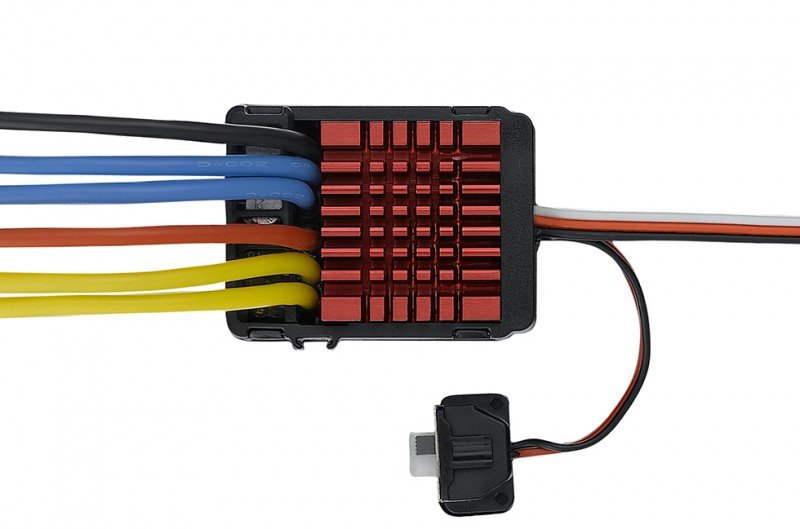

HOBBYWING QuicRun WP 860 Dual Brushed - 30105400 Hobbywing好盈  [HW-30105400]

This ESC is particularly created for new beginners and intermediate modelers;
it not just carries forward the outstanding quality of HOBBYWING services and products
but simplifies the operation.

The waterproof and dust-proof design permits the QUICRUN WP-860-Dual-Brushed
to be used in every weather conditions with no problem of harm caused
to your ESC from water or dust.

The integrated switch mode BEC with a maximum production of 6Amp and voltage of 5V
get this ESC appropriate for various servos.

This ESC features automobile throttle calibration and parameter environment
via jump caps is easy-to-use, particularly applicable to brand new novices.

This ESC can drive two brushed engines as well.
It’s economical and relevant to low-speed crawlers and tanks which run two motors

• Scale : 1/8^th、1/10^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

• Cont./Peak Current : 60A/360A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC Output : change Mode:5V/3A

• Input cables : Red-16AWG-150mm*2/Black-16AWG-150mm*1
• Output cables : B lue-16AWG-100mm*2/Yellow-16AWG-100mm*2
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

• Size : 25.0x25.0x10.0mm
• Voltage Range : 5-7.4V
• Powered by : running on BEC

• SET Button on ESC : Not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : perhaps not Supported
• Program Port : Dip Switch

• Firmware Upgrade : perhaps not Supported

• Size : 46.0x36.0x26.3mm
• Weight : 73g

• Motors : Brushed Motors
• Vehicles : 1/8^th, 1/10^th Touring Cars/Buggies/Trucks//Rock Crawlers
• KV Rating/T Count : 2S LiPo: T≥12T
  3S LiPo: T≥18T
  4S LiPo: T≥24T
  (540/550/775 Size Motors)
