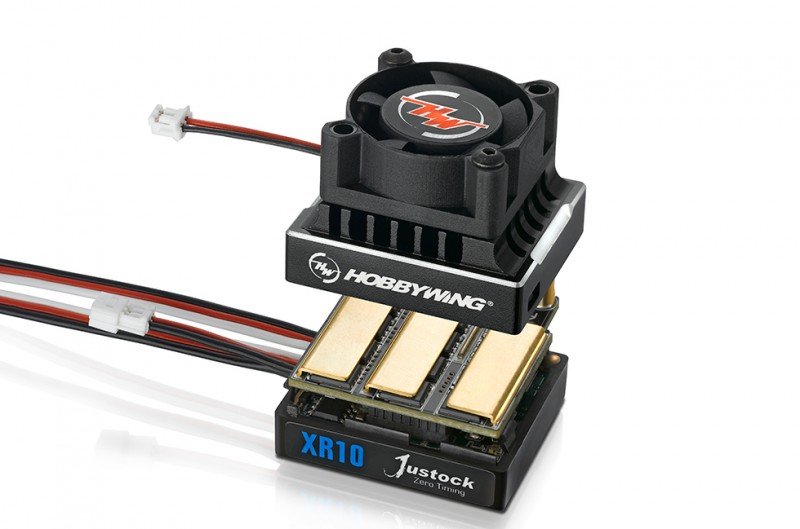

HOBBYWING XeRun XR10 Justock - 30112000 Hobbywing好盈   [HW-30112000]

The XR10 JUSTOCK ESC is specifically designed
for Zero-timing rushing course. Its timing system has
been completely set to ZERO degree. Using the
same branded engine and winding will make certain that
every racer could have equivalent energy system for
100per cent reasonable and competitive racing.

Reliable equipment coupled with advanced level computer software
technology enables the XR10 JUSTOCK never to just
provide high power output, but additionally overload
protection associated with ESC circuit.

The modified heatsink, which advances the
surface area, with the HOBBYWING
patented copper heat-conductive dishes which
are attached to the MOSFET board permits the
interior temperature to be quickly used in the
heatsink for dissipation. Using the
high-performing detachable cooling fan, a
highly reliable heat transfer system for
maximum cooling is accomplished.

With its compact design, the XR10 JUSTOCK fits
many chassis from 1/10th touring cars, 1/12th pan
cars as well as F1.

You can upgrade the XR10 JUSTOCK with all the Hobbywing USB
LINK pc software, a multifunction LCD system field and a laptop.
Hobbywing updates its ESC firmware frequently providing you with
upgraded features more often whenever available

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

• Cont./Peak Current : 60A/380A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : 6V@2A

• Input Wires : Blue-14AWG-200mm*1/Black-14AWG-200mm*1
• Output cables : Red-14AWG-200mm*1/Yellow-14AWG-200mm*1/Orange-14AWG-200mm*1
• Input Connectors : No
• Output Connecotors : No

• Size : 25x25x10mm
• Voltage Range : 5-8.4V
• Powered by : running on BEC

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Programming Wire : Programming/Throttle Wire

• Firmware Upgrade : Supported

• Size : 33.0x28.0x31.5mm
• Weight : 46g

• Motors : SL BL Motors
  SD BL Motors
• Vehicles : 1/10^th,1/12^thTouring Car/Buggy tournaments (Especially inventory Class)
• KV Rating/T Count : 2S LiPo: 1/10^th Touring Cars≥8.5T, 1/10^th Buggies≥11.5T
  3S LiPo: 1/10^th Touring Cars≥13.5T, 1/10^th Buggies≥17.5T
  3650 Motors
