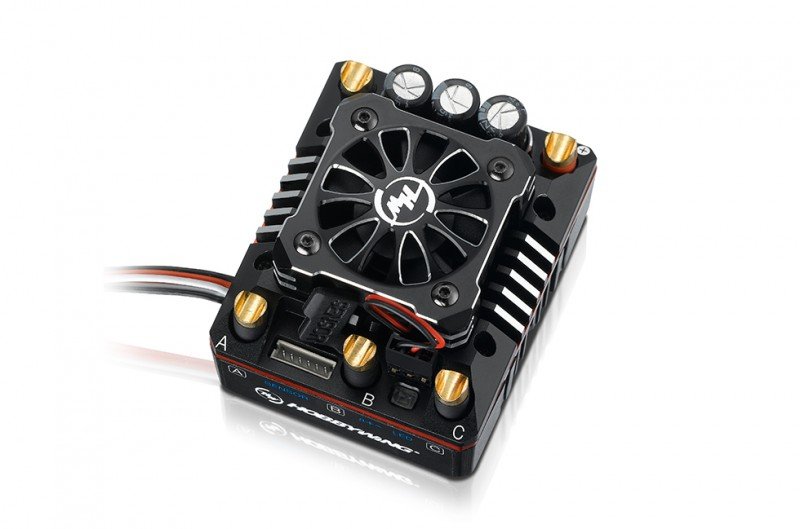

HOBBYWING XeRun XR8 Plus - 30113300 Hobbywing好盈   [HW-30113300]

Built with the most rugged and high-quality elements and along with cutting-edge
firmware, the XR8 PLUS is able to deliver unmatched energy and gratification for even
probably the most hardcore of racing applications, but is also responsive enough to guard itself
from damage because of overloading considering real abuse, overuse if not human error.

With strong torque and exemplary production, the XR8 PLUS can definitely look after all
the ability hungry demands that expert motorists need. The highly
adjustable parameters of ESC allows motorists to take pleasure from smooth throttle
reaction whenever throttle/brake linearity is utmost needed.

The XR8 PLUS is the world’s very first 1/8^th ESC that integrates a HV integrated BEC with a production
present all the way to 15 Amp and a switchable production voltage of 6V-7.4V. The high voltage BEC is
built to handle today’s high voltage servos on demand employed by 1/8^th scale automobiles.

HOBBYWING’s patented air conditioning technology makes use of
proprietary heat-conductive copper bars to quickly and
effortlessly move all internal heat from MOSFET board
toward built-in CNC machined billet aluminum heatsink
housing. The cooling fan adopts a shockproof mounting
which effectively reduces the chance of fan damage due
to vehicle’s frequent jumps.

Because for the exemplary idea and design placed into
the XR8 PLUS, users can get a virtually maintenance
free operating experience, because of advanced level mistake
sensing and thermal security, an exceedingly
rugged housing, the ultimate in heat-dissipation
technology and a unique shockproof fan mounting in a position
to withstand anything that a racer can toss at it.

The world’s very first 1/8^th scale competition ESC which includes
adopted dynamic timing technology, which includes had great
successes in 1/10th scale touring vehicle competitions for a lengthy
time now, will greatly expand the adjustable power output
range of the ESC while nevertheless maintaining the overall system
effectiveness and smoothness.

• Scale : 1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

• Cont./Peak Present : 150A/950A
• Input : 2-6S LiPo/6-18 Cells NiMH
• BEC production : Switch Mode:6V/7.4V,6A

• Input Wires : Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : No

• Size : 30.0x30.0x10.0mm
• Voltage Number : 5-7.4V
• Powered by : Powered by BEC

• SET Button on ESC : maybe not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

• Firmware Upgrade : Supported

• Size : 58.7x48.0x36.9mm
• Weight : 127g

• Motors : SL BL Motors
  SD BL Motors
• Vehicles : 1/8^thTouring Car/Buggy/Truck Competitions
• KV Rating/T Count : 4S LiPo: KV≤3000
  6S LiPo: KV≤2400
  (40XX variety of Motors)
