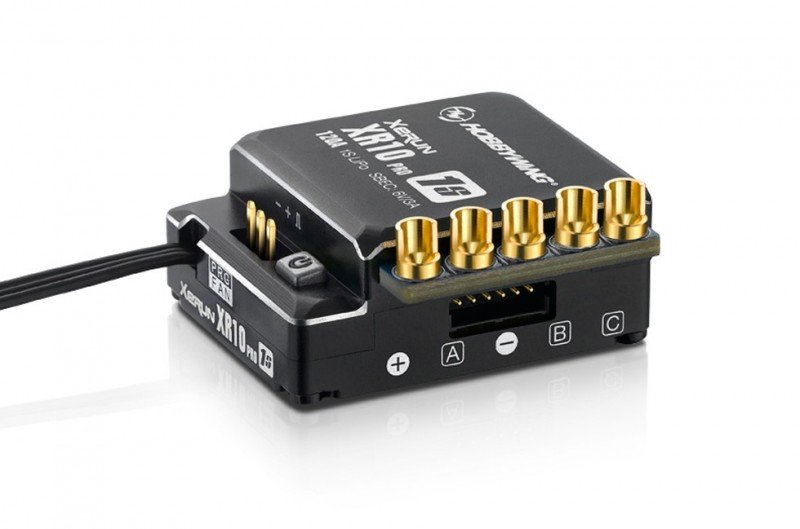

HOBBYWING XeRun XR10 PRO 1S - 30112603 Hobbywing好盈   [HW-30112603]

Reliable equipment coupled with great computer software (contains 5 typical ready-to-use profiles)
creates an ideal power solution to1/12^th scale top touring car racing.

Height of 15.9mm (6mm reduced than the previous V3.1 1S ESC) saves area and makes the
installation convenient; weight of 35.6g (12g lighter than the past V3.1 1S ESC)
provides more weight margin whenever adjusting the balance of chassis.

Internal BEC features booster circuitry can output the current/voltage as high as 6A/6V and
power various servos without linking any extra receiver battery.

The integrated electronic switch with a lifespan of over 50000 on/off cycles
entirely solves the problems like stuck reed, rusted contact points, and
automatic shutdown main-stream mechanical switches often have.The internal
capacitor module saves area and makes the wiring simple and neat.

With Hobbywing’s “WiFi Express” module and iPhone or an Android os phone (with the HOBBYWING WiFi Link
software set up), the consumer can from another location program parameters, update firmware and
always check appropriate information for the ESC without making the control stand.

Independent and adjustable throttle & brake PWM frequencies guarantee exact and accurate
throttle and brake control for all classes of tournaments (esp. the Stock class).

The split PRG/FAN slot in the ESC can power an external fan to increase air conditioning performance
or link the ESC to a LCD system package or WiFi module for ESC programming.

This ESC features the data-logging function that may record the utmost ESC/motor
temperature, RPM and etc. immediately and allows users to check those
information via a LCD system package or WiFi module after every usage.

• Scale : 1/12^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

• Cont./Peak Current : 120A/830A
• Input Voltage : 1S Lipo/3-4 Cell NiMH
• BEC Output : Switch Mode: 6V@3A

• Input cables : Red-12AWG-200mm*1 Black-12AWG-200mm*1
  Red-14AWG-200mm*1 Black-14AWG-200mm*1
• Output Wires : Black-12AWG-200mm*3 Black-14AWG-200mm*3
• Input Connectors : No
• Output Connectors : No

• SET Button on ESC : Not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

• Firmware Upgrade : Supported

• Size : 37.5x31x15.9mm
• Weight : 35.6g
