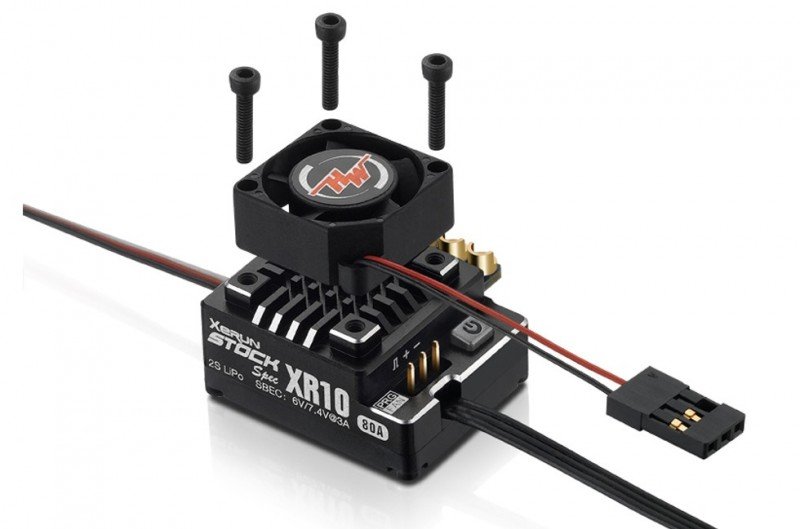

HOBBYWING XeRun XR10 PRO STOCK SPEC - 30112401 Hobbywing好盈   [HW-30112401]

A built-in electronic switch coupled with an external removable switch effectively helps
the XR10 Stock Spec avoid some flaws of ordinary or one-switch ESCs. The inner switch
makes the wiring convenient, the outside switch is actually handy once the vehicle shell is
set up on together with built-in switch is not any much longer touchable.

Reliable equipment along with great software (contains 5 typical ready-to-use
profiles) produces a perfect energy solution to the STOCK course of 1/10 scale touring car,
buggy race.

With Hobbywing's "WiFi Express" module and iPhone or an Android os phone (with all the HOBBYWING
WiFi Link computer software set up), the user can remotely program parameters, update firmware and
check relevant data associated with the ESC without making the control stand.

This ESC is smaller and lighter versus standard variation XR10
professional plus it's the mini version of XR10 Pro 160A. The little size
(31.5x25.6x16.1mm) makes the installation convenient together with
lightweight (just 28g w/o wires) provides more excess body fat margin
whenever adjusting the total amount of this chassis.

The integral switch mode BEC with a maximum production
of 6A and voltage adjustable between 6V and 7.4V
enables the user to utilize various high voltage servos.

Independent and adjustable throttle & brake PWM frequencies guarantee accurate and accurate
throttle and brake control for several classes of tournaments (esp. the Stock class).

This ESC features the data-logging function that may record
the utmost ESC & engine conditions, the minimum battery
voltage, the utmost motor RPM and etc. instantly and
permits users to check on those information via a LCD program field or
WiFi module after each and every usage.

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

• Cont./Peak Current : 80A/380A
• InputVoltage : 2S Lipo/5-7 Cell NiMH
• BEC Output : change Mode:6V/7.4V,3A

• Input Wires : Black-14AWG-200mm*2
• Output Wires : Black-14AWG-200mm*3
• Input Connectors : No
• Output Connectors : No

• Size : 20x20x8mm
• Voltage number : 5-7.4V
• Powered by : BEC

• SET Button on ESC : maybe not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

• Firmware Upgrade : Supported

• Size : 31.5x25.6x16.1mm
• Weight : 54.5g (w/Wires)

• Motors : SL BL Motors
  SD BL Motors
• Vehicles : STOCK course of 1/10^th Touring Car & Buggy Racing
• KV Rating/T Count : 1/10^th Touring Cars≥10.5T, 1/10^thBuggy≥13.5T
