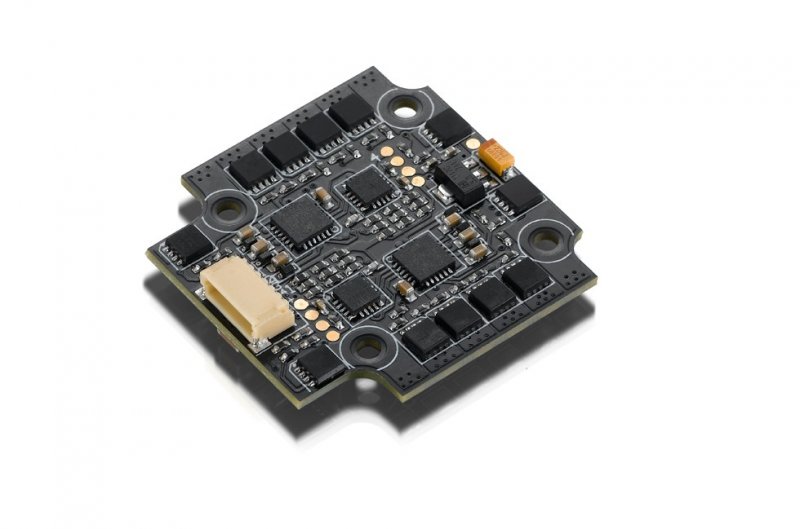

HOBBYWING XRotor Nano 20A 4in1 BLHeli-S DShot600 - 30901068 Hobbywing好盈   [HW-30901068]

The XRotor Nano 20A 4in1 BLHeli-S DShot600 not just includes 4
high-performance 20A ESCs, but in addition a volt monitoring port which allows FC to
monitor the voltage immediately (on condition your FC supports this function).
With all the incredibly tiny size, the installation and wiring can be extremely simple
and easy when combining it using the Hobbywing XRotor Nano Flight Controller.
It’s an ESC especially created for super mini-sized indoor FPV(s).

The use of EMF8BB21F16G MCUs utilizing the running regularity all the way to
48MHz, brought in high quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 levels of PCBs guarantees less heat,
greater efficiency and rapider reaction.

The ESC (with great performance and rich functions)
utilizes the original BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via various techniques
(i.e. via throttle signal wire with using other development board
or a FC flashed with the Cleanfight / Betaflight firmware).

Besides the standard PWM mode,
Oneshot125/Oneshot42/Multishot modes, the latest
DShot150/300/600 modes may supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and rapid reaction.

The ESC firmware utilizes equipment produced motor pwm for smooth
throttle reaction and silent operation. Damped light does regenerative
breaking, causing extremely fast engine retardation, and it inherently also
does active freewheeling.

• Cont./Peak active : 20Ax4/ 30Ax4
• Input Voltage : 2-4S Lipo
• BEC output : No

• Input Wires : Red-16AWG-85mm/ Black-16AWG-85mm
• Output Wires : No wires but solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : BLHeli-S A-H-50 16.5
• ESC Programming : BLHeliSuite
• Stick Programming : Supported
• DEO : Supported
• Throttle Range Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• DShot150/300/600 : Supported
• Timing : Supported
• Motor Rotation : Supported

• Size : 32x31.9x5.8mm
• Weight : 6g

• 130-280mm FPVs
