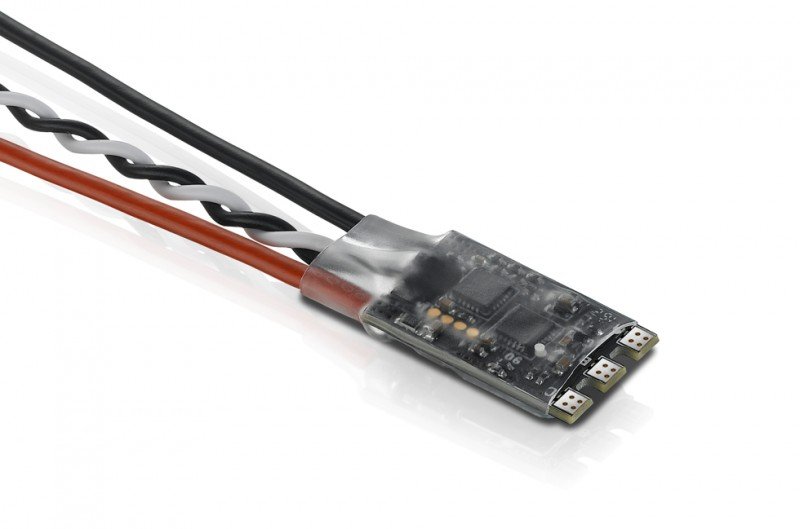

HOBBYWING XRotor micro 20A BLHeli - 30901066 Hobbywing好盈   [HW-30901066]

ESCs with incredibly small size and light-weight are
especially created for competition FPV drones.

The usage of F396 48MHz MCU, brought in MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 layers of PCBs alongside
quality elements guarantees less temperature, greater effectiveness and rapider response.

Users can flash or update the BLHeli firmware through the sign cable (on ESCs), and program 4 ESCs at the same time after
linking their journey controller to your BLHeliSuite computer software in the event that trip controller uses the CleanFlight firmware.

Damped light mode improves the motor retardation and permits
users to brake the FPV drones better. Active-freewheeling
technology improves driving efficiency, journey some time temperature
dissipation. The ESCs support OneShot125 high rate throttle
signal and regular throttle signal (within 500Hz) modes.

The twisted-pair throttle signal cable efficiently reduces interference stated in alert
transmission and makes the flight a great deal more stable and reliable.

• Cont./Peak Current : 20A/30A
• LiPo Cells : 2-4S LiPo
• BEC production : No

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : perhaps not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light Color : maybe not Supported
• Motor Rotation : Supported

• Size : 24.0x13.9x5.5mm
• Weight : 7g

• FPVs with 130-280mm Diagonal Wheelbase
