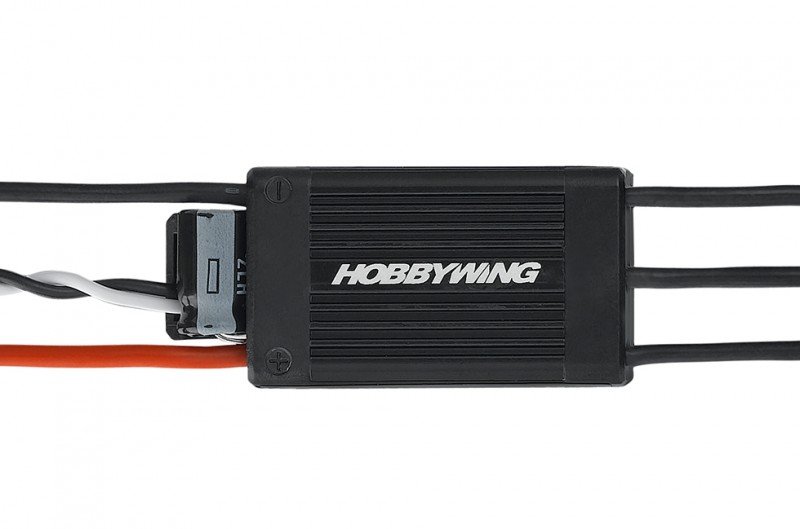

HOBBYWING XRotor PRO 25A 3D - 30902021 Hobbywing好盈  [HW-30902021]

China's first multi-rotor controller with 3D-flight function. It may change the motor rotation
very quickly which enable pilots to perform complete 3D journey.

The DEO (Driving effectiveness Optimization) technology implemented in ESC has multiple
benefits:
● Active braking. When reducing the throttle amount, the motor will decelerate very quickly.
This feature enables pilots to more easily perform all maneuvers like razor-sharp turns, altitude
changes, and unexpected braking.
● greater driving effectiveness, longer trip time.
● Lower ESC heat and an even more dependable procedure .
* Different businesses call this technology by different names; “SimonK” calls it “Comp_PWM”,
“BLHeli” calls it “Dampaning-light” and Kontronik calls it “Active Freewheeling”.

Highly smart and adaptive standard settings like automobile timing for simple operation.
Quicker Heat

The twisted-pair throttle sign cable effectively reduces
interference produced in signal transmission and makes journey
more stable and reliable.

• Cont./Peak Current : 25A/40A
• LiPo Cells : 3-4S LiPo
• BEC Output : No

• Input Wires : Red-18AWG-150mm*1/Black-18AWG-150mm*1
• Output cables : Black-18AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)

• Throttle number Calibration : perhaps not Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : perhaps not Supported
• Timing : Supported
• Light colors : Not Supported
• Motor Rotation : maybe not Supported

• Size : 46.6x22.2x10.5mm
• Weight : 25g
