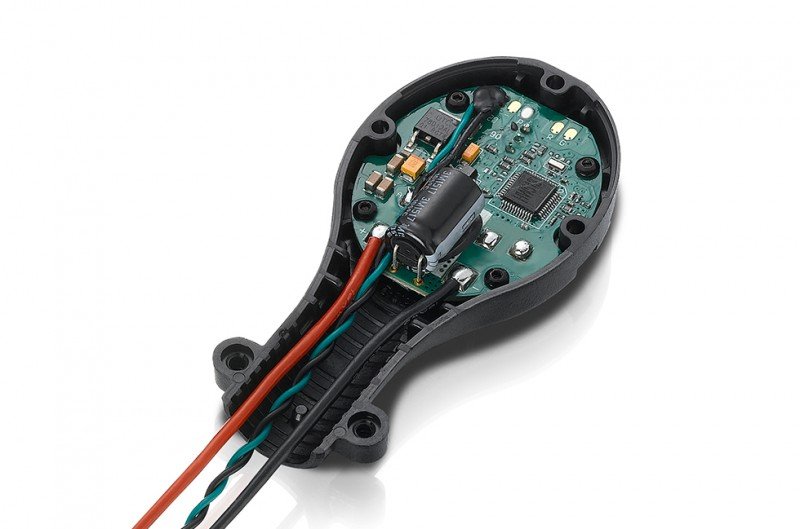

HOBBYWING XRotor PRO 25A Circular (Black Color)- 30902022 Hobbywing好盈   [HW-30902022]

Motor may be closely installed onto the ESC, which greatly simplifies wiring and
installation of the propulsion system.

The mount is excellently suited to the popular 16mm
(outer diameter) carbon fibre supply pipe.

The integrated structure of this ESC and engine mount has
exemplary dustproof and splash proof security.

The DEO (Driving Efficiency Optimization) technology implemented
into the ESC has multiple advantages:
● Active braking. Whenever reducing the throttle amount, the engine will
decelerate rapidly. This feature enables pilots to quicker
perform all maneuvers like sharp turns, altitude modifications, and
unexpected braking.
● Higher driving effectiveness, longer flight time.
● Lower ESC temperature and an even more reliable operation .
* various companies call this technology by various names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

Highly smart and adaptive standard settings like
auto-adjusting timing for easy procedure.

• Cont./Peak Current : 25A/40A
• LiPo Cells : 3-6S LiPo
• BEC production : No

• Input Wires : Red-18AWG-300mm*1/Black-18AWG-300mm*1
• Output cables : No
• Input Connectors : No
• Output Connectors : No

• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

• Size : 89.3x44.5x20.9mm
• Weight : 50.5g(w/ Motor Mount)
