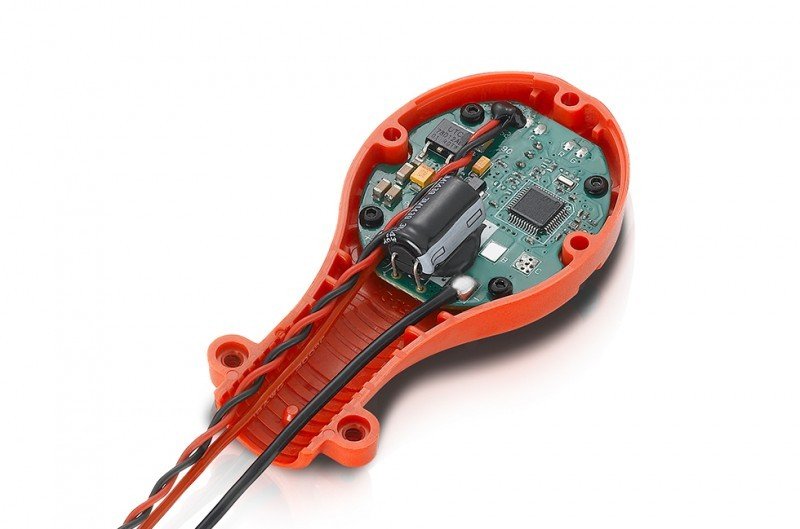

HOBBYWING XRotor PRO 25A Circular (Red Color) - 30902023 Hobbywing好盈  [HW-30902023]

Motor could be closely installed on the ESC, which greatly simplifies wiring and
installing of the propulsion system.

The mount is excellently suited to the favorite 16mm
(outer diameter) carbon dietary fiber arm tube.

The incorporated structure of this ESC and motor mount has
exemplary dustproof and splash proof security.

The DEO (Driving effectiveness Optimization) technology implemented
in the ESC has numerous advantages:
● Active braking. When reducing the throttle amount, the engine will
decelerate quickly. This feature enables pilots to more easily
perform all maneuvers like sharp turns, altitude changes, and
unexpected braking.
● greater driving efficiency, longer journey time.
● Lower ESC heat and a more reliable operation .
* Different companies call this technology by various names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

Highly smart and adaptive default settings like
auto-adjusting timing for easy procedure.

• Cont./Peak Current : 25A/40A
• LiPo Cells : 3-6S LiPo
• BEC production : No

• Input Wires : Red-18AWG-300mm*1/Black-18AWG-300mm*1
• Output Wires : No
• Input Connectors : No
• Output Connectors : No

• Throttle number Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light colors : Not Supported
• Motor Rotation : perhaps not Supported

• Size : 89.3x44.5x20.9mm
• Weight : 50.5g(w/ Motor Mount)
