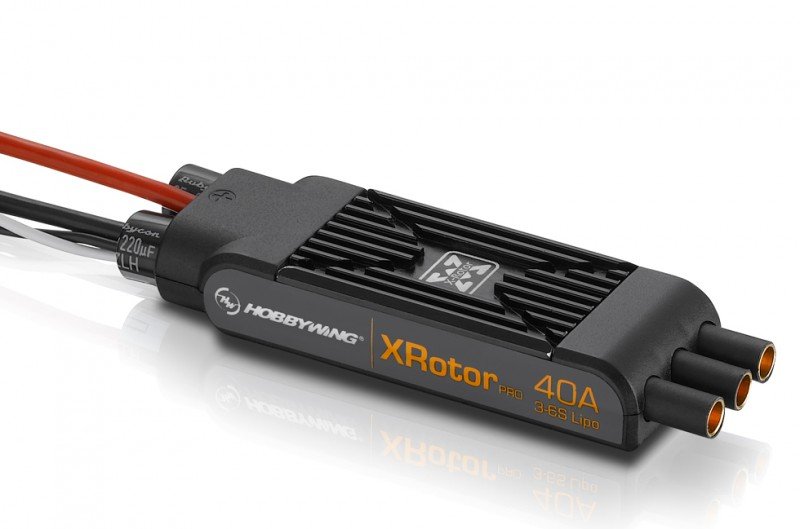

HOBBYWING XRotor Pro 40A (Version B) - 30902041 Hobbywing好盈   [HW-30902041]

A completely new structural design which enclosed within an
exquisite solid synthetic instance providing you with the all-round security
and security for the ESC. The newly created ESC
can be simply put into a carbon-fiber tube with the I. D. of 23mm.

Auto timing adjustment and preset parameters
relevant to the majority of applications exceedingly
simplify procedure and optimize user experience.

The multi-rotor has made the demand over ESC reaction become also harsher than usual.
Our newly special core program for quick throttle response rate means an even more stable hover and
quick motion during flight. With all the XRotor 3D and Pro series ESC’s brand new rapid reaction rate,
the ESC are designed for difficult and brand new challenges relaxed.

Driving Efficiency Optimization (DEO) Technology is adopted for a greater driving efficiency

A high-performance aluminum folded fin temperature sink is combined
aided by the specifically created heat-conductive slotted structure that
brings excellent heat-dissipating impact. This is certainly an Extremely
Simplified Operational Procedure.

• Cont./Peak active : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC production : No

• Input cables : Red-16AWG-500mm*1/Black-16AWG-500mm*1
• Output cables : No
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)
• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : maybe not Supported
• Timing : Supported
• Light Color : maybe not Supported
• Motor Rotation : perhaps not Supported

• Size : 73.5x21.8x11.0mm
• Weight : 45g

• 550 Class Multirotors
