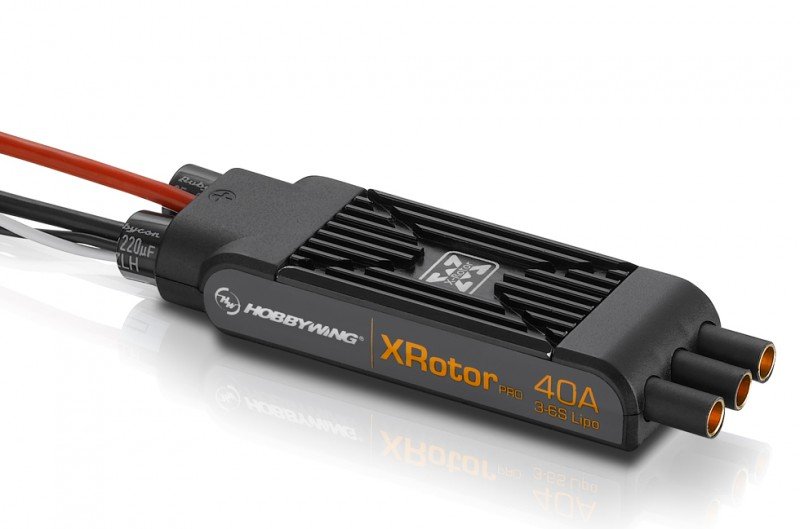

HOBBYWING XRotor Pro 40A (Version A) - 30902042 Hobbywing好盈   [HW-30902042]

A new structural design which enclosed within an
exquisite solid plastic case providing you with the all-round security
and protection the ESC. The newly created ESC
can be easily put into a carbon-fiber pipe utilizing the I. D. of 23mm.

Auto timing adjustment and preset parameters
relevant to most applications incredibly
simplify operation and optimize user experience.

The multi-rotor has made the demand over ESC reaction become also harsher than typical.
Our newly unique core program for rapid throttle reaction rate means a far more stable hover and
swift motion during journey. With all the XRotor 3D and Pro series ESC’s brand new rapid reaction rate,
the ESC are designed for difficult and brand new challenges relaxed.

Driving Efficiency Optimization (DEO) Technology is used for a greater driving efficiency

A high-performance aluminum folded fin temperature sink is combined
using the specifically created heat-conductive slotted framework that
brings exemplary heat-dissipating effect. This will be an Extremely
Simplified Operational Procedure.

• Cont./Peak active : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

• Input cables : Red-16AWG-500mm*1/Black-16AWG-500mm*1
• Output Wires : Black-16AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)
• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : perhaps not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : perhaps not Supported

• Size : 66.0x21.8x11.0mm
• Weight : 50g

• 550 Course Multirotors
