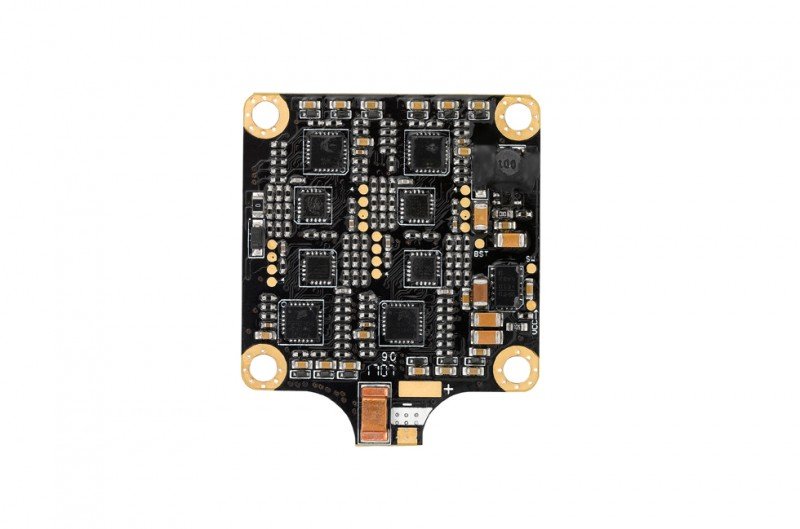

HOBBYWING XRotor Micro 40A 4in1 BLHeli-S DShot600 - 30901076 Hobbywing好盈   [HW-30901076]

The 4-in-1 ESC not only includes 4 high-performance 40A ESCs, 1 built-in BEC,
but additionally an Amp/Volt monitoring slot that allows FC observe the volt & amp
immediately (on condition your FC supports this function); it’s no more than a
FC for FPV(s) and simple for installation and wiring. With the remarkably little
size, it's a great match for competition FPV(s).

The use of EMF8BB21F16G MCUs using the operating regularity as high as
48MHz, imported quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 layers of PCBs guarantees less heat,
higher efficiency and rapider reaction.

The ESC (with great performance and rich functions)
utilizes the original BLHeli-S firmware and supports adjusting
parameters or updating firmware via different practices
(i.e. via throttle sign wire with making use of other development
board or a FC flashed because of the cleanfight/betaflight firmware).

Besides the regular PWM mode,
Oneshot125/Oneshot42/Multishot modes, the most recent
DShot150/300/600 modes may supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and fast response.

The ESC firmware utilizes hardware produced motor pwm for smooth
throttle reaction and quiet procedure. Damped light does regenerative
breaking, causing very fast engine retardation, plus it inherently additionally
does active freewheeling.

• Cont./Peak Current : 40Ax4/50Ax4
• Input Voltage : 2-5S Lipo
• BEC output : 5V & 1.5A

• Input cables : Red-14AWG-130mm / Black-14AWG-130mm
• Output Wires : No cables but solder tabs
• Input Connectors : XT60 (w/ Wires Soldered on)
• Output Connectors : No
• Firmware : BLHeli-S A-H-50 16.5
• ESC Programming : Stick Programming, BLHeliSuite
• Stick Programming : Supported
• DEO : Supported
• Throttle number Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• DShot150/300/600 : Supported
• Timing : Supported
• Motor Rotation : Supported

• Size : 42.6x36x4mm
• Weight : 10g

• 130-280mm FPVs
